Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Rated Voltage: | 1500VDC | Rated Current: | 400A |
| Breaking Capacity: | DC50KA | Standard: | UL248-19、 IEC60269.6、ROHS |
| Usage: | Charging Pile,PDU,UPS | Keyword: | Solar PV Fuse |
| High Light: | 1500VDC Solar PV Fuses,Copper Alloy Pins Solar PV Fuses,400 amp dc fuse |
||

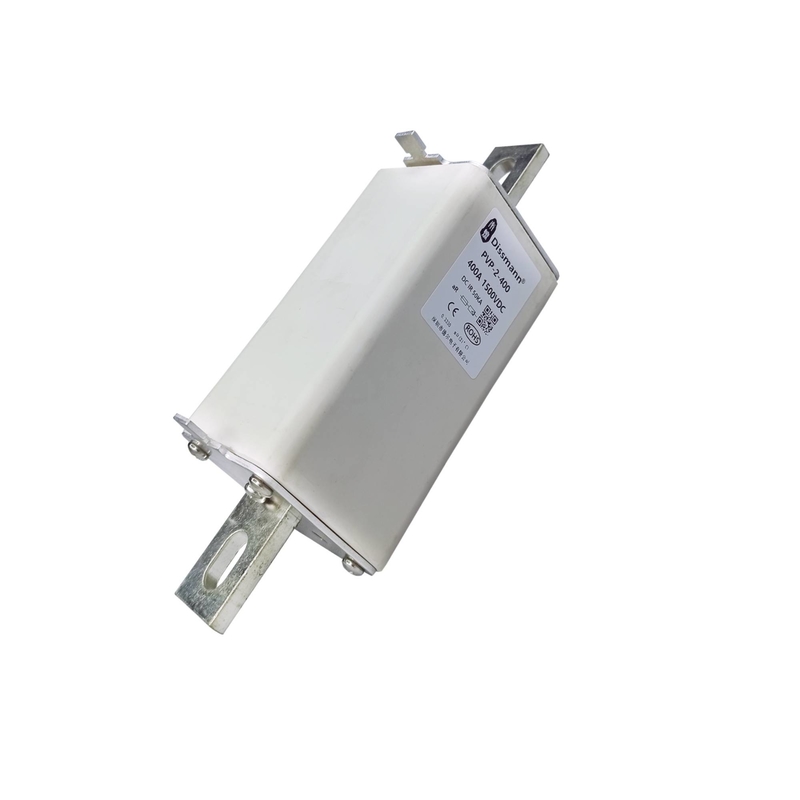

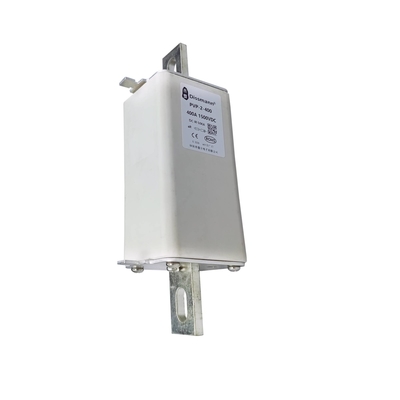

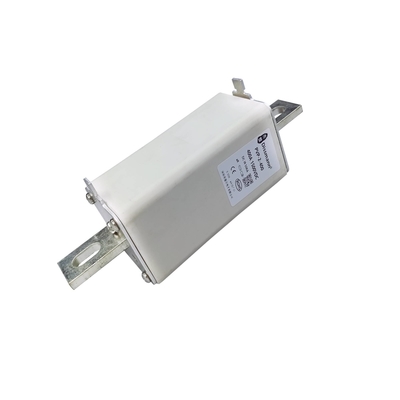

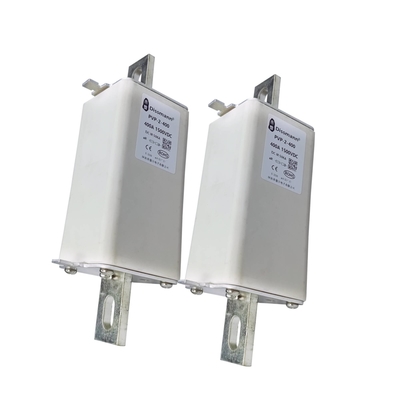

Solar PV Fuse 400amp Fuse High Voltage Fuse DC 50 KA Fuse Charging Pile Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Features:
Solar PV Fuse
Many kinds of Solar PV Fuse
Current rating:400A
Voltage rating: 1500VDC
Breaking capacity:DC50KA
Product Presentation:
|
Rated Voltage
|
DC1500V |
Type Protection
|
aR |
| Rated Current | 63A-400A |
Breaking Capacity
|
DC50KA (time constant1-3ms) |
|
Meet the Requirement
|
UL248-19,IEC60269.6 EU and Rosh Directive |
Remarks
|
Overall dimensions of the product(mm)
Product type of Solar PV fuse
|
Rated voltage
|
Rated Current
|
I2t(A2s) |
Power dissipation
|
|
| Pre-arc | Total | |||
| 1500VDC | 63 | 700 | 2000 | 27 |
| 80 | 1500 | 4000 | 31 | |
| 100 | 3000 | 8000 | 35 | |
| 125 | 5000 | 14000 | 43 | |
| 160 | 9700 | 28000 | 53 | |
| 200 | 19400 | 58000 | 59 | |
| 250 | 37400 | 112000 | 68 | |
| 315 | 67300 | 202000 | 83 | |
| 350 | 98600 | 296000 | 86 | |
| 400 | 146100 | 438200 | 95 | |
Currentcharacteristic curve
