Product Details:
|
| Material:: | PBT | Colour:: | Red |
|---|---|---|---|
| Rated Voltage:: | 28VDC | Rated Current:: | 10A |
| Breaking Capacity:: | 2000A | Standard:: | SAE J553；SAE J1284；ISO 8820-3； DIN 72581-3、ROHS |
| Usage:: | ATC,Automotive | Keyword：: | Over Current Protection Fuse |
| High Light: | 28VDC Resettable Circuit Breaker Blade Fuse,5A Resettable Circuit Breaker Blade Fuse,resettable blade fuse |
||

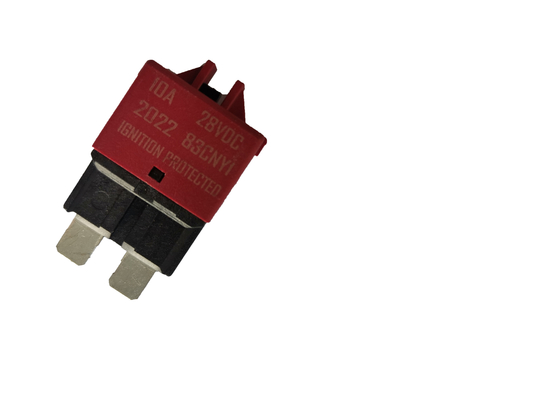

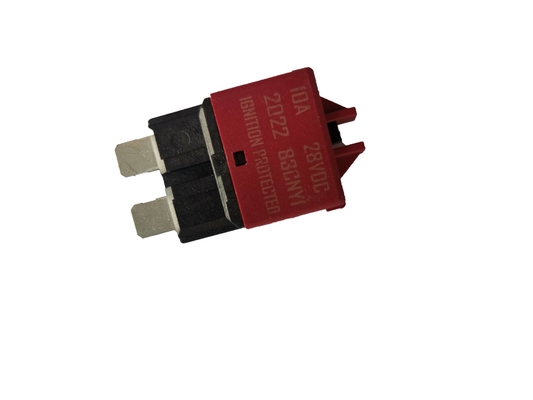

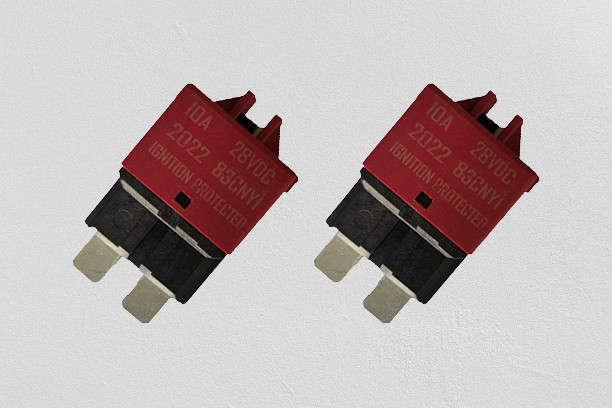

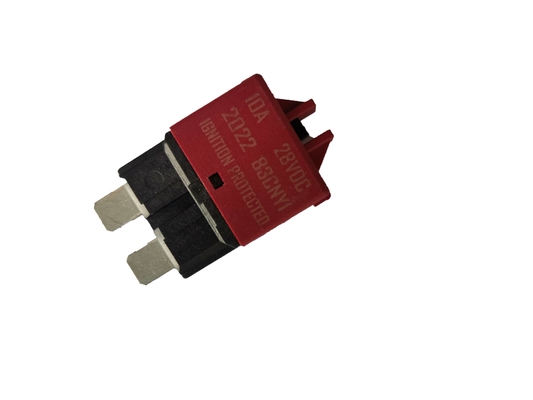

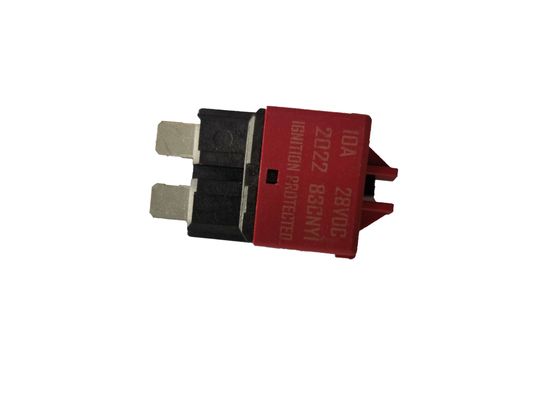

Resettable Circuit Breaker Blade Fuse Over Protection Fuse ATO Fuse
Material:
Noumenon:nylon
Features:
Resettable Circuit Breaker Blade Fuse
Many kinds of Resettable Circuit Breaker Blade Fuse
Current rating: 5A
Voltage rating: 28VDC
Breaking capacity:2000A
Product Presentation:
|
Rated Voltage |
28VDC |
Characteristic |
Recoverable |
| Rated Current | 5A-30A |
Breaking Capacity |
2700A |
|
Meet the Requirement |
SAE J553；SAE J1284；ISO 8820-3；DIN 72581-3 ClassC EU and Rosh Directive |
Remarks |
Overall dimensions of the product(mm)
Product type
| Model | Product code | Rated current | Pigment |
| DFR-A | DFR-A-5 | 5 | (Tan) |
| DFR-A-10 | 10 | (Red) | |
| DFR-A-15 | 15 | (Blue) | |
| DFR-A-20 | 20 | (Yellow) | |
| DFR-A-30 | 30 | (Green) |
Performance criteria
| Test current item(A) | Minimum time(s) | Maximum time(s) |
| 70% | 3600s | ∞ |
| 100% | 1800s | ∞ |
| 135% | 3s | 900s |
| 160% | 2s | 120s |
| 200% | 0 | 40s |
| 350% | 350ms | 6s |
| 600% | 0 | 2s |
