Product Details:
|
| Material:: | Nylon | Colour:: | Yellow |
|---|---|---|---|
| Rated Voltage:: | 28VDC | Rated Current:: | 20A |
| Breaking Capacity:: | 2000A | Standard:: | SAE J553；SAE J1284；ISO 8820-3； DIN 72581-3、ROHS |
| Usage:: | ATO,Over Current Protection | Keyword：: | Automotive Fuse |
| Highlight: | Nylon Resettable Circuit Breaker Blade Fuse,28VDC Resettable Circuit Breaker Blade Fuse,Nylon resettable mini blade fuse |
||

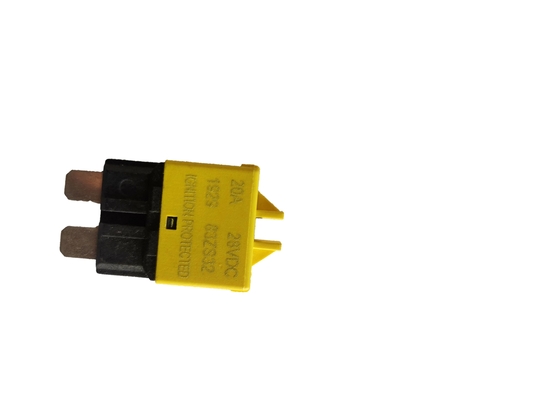

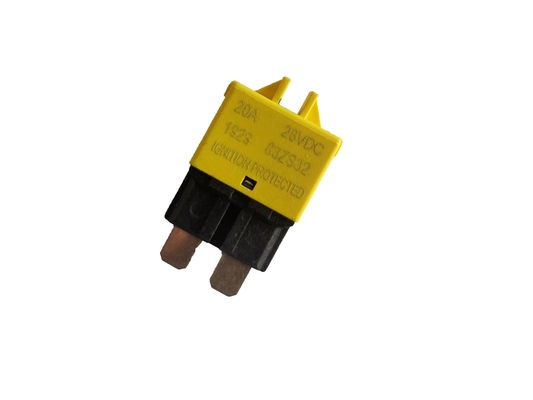

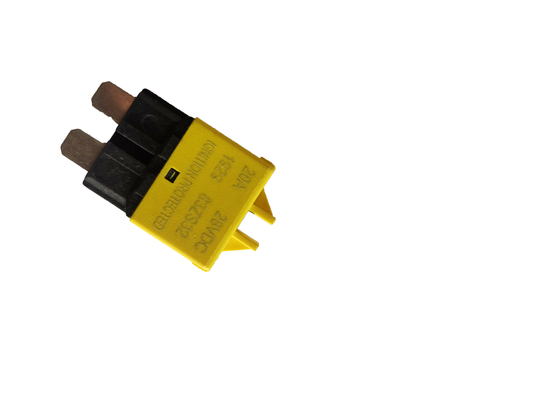

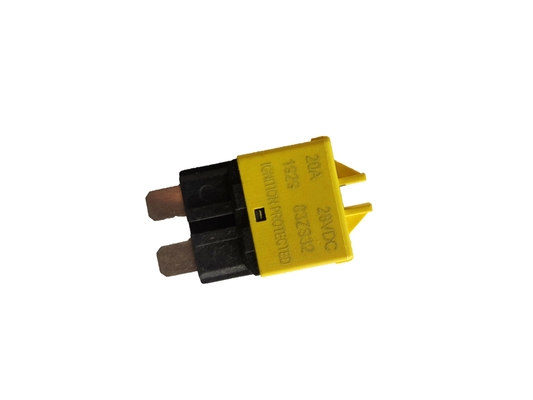

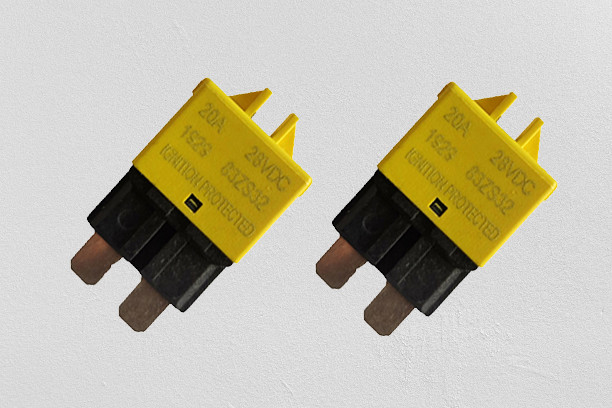

Resettable Circuit Breaker Blade Automotive Fuse Over Protection Fuse
Material:
Noumenon:Nylon
Pins:Copper alloy
Product Presentation:
|
Rated Voltage |
28VDC |
Characteristic |
Recoverable |
| Rated Current | 5A-30A |
Breaking Capacity |
2000A |
|
Meet the Requirement
|
SAE J553；SAE J1284；ISO 8820-3；DIN 72581-3 TypeC Europe and RoHs Directive |
Remarks
|
SAE J553；SAE J1284；ISO 8820-3； DIN 72581-3,ROHS |
Overall dimensions of the product(mm)
Product type
| Model | Product code |
Rated current ( A ) |
Pigment |
| DFR-A | DFR-A-5 | 5 | Tan |
| DFR-A-10 | 10 | Red | |
| DFR-A-15 | 15 | Blue | |
| DFR-A-20 | 20 | Yellow | |
| DFR-A-30 | 30 | Green |
Performance criteria
| Test current item(A) | Minimum time(s) | Maximum time(s) | Test current item(A) |
| 70% | 3600s | ∞ | 70% |
| 100% | 1800s | ∞ | 100% |
| 135% | 3s | 900s | 135% |
| 160% | 2s | 120s | 160% |
| 200% | 0 | 40s | 200% |
