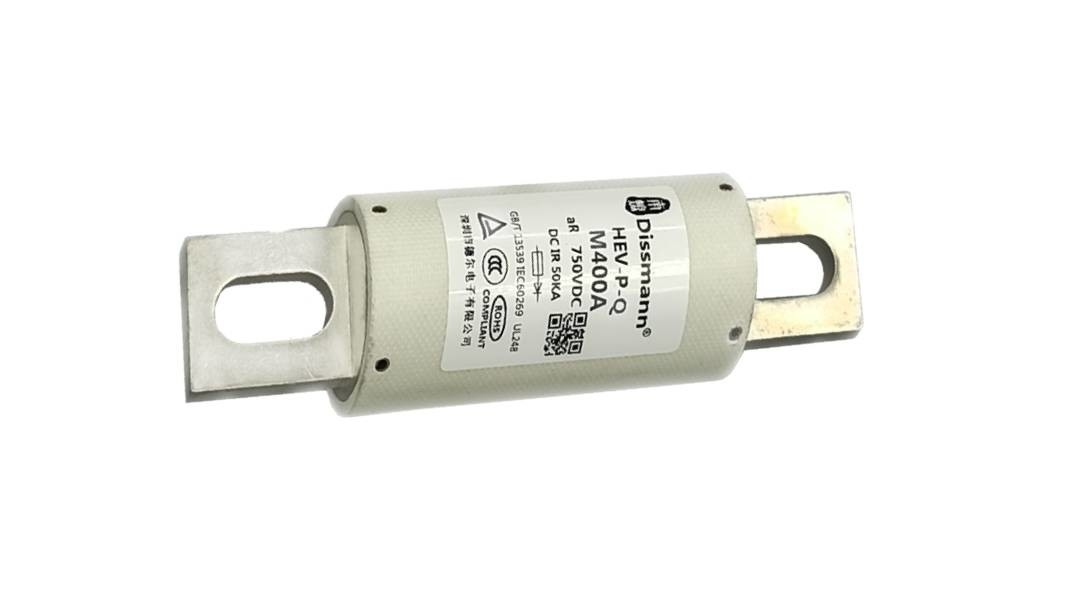

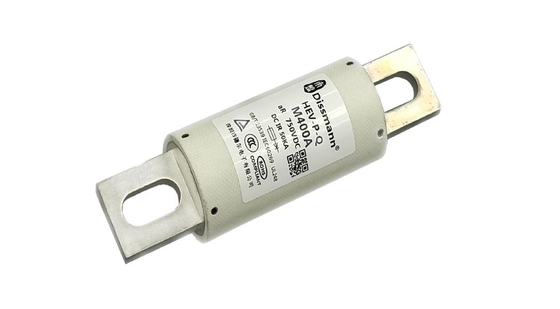

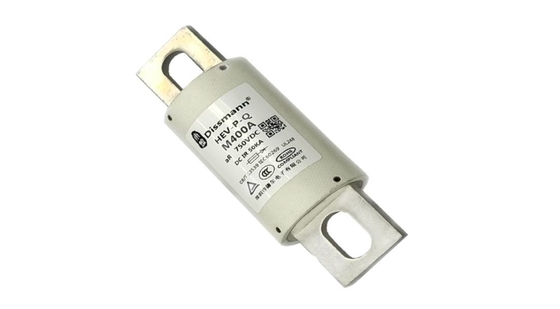

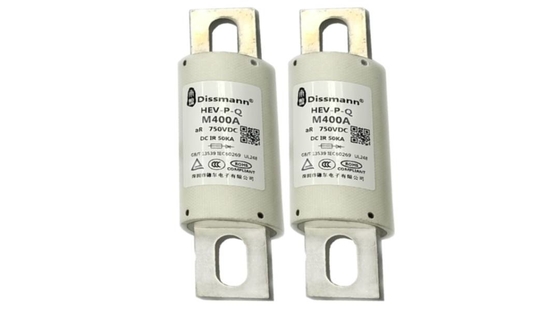

Large Image :  JASO-D622 EV Charger Fuse , Semicomductor Protection 400 Amp Dc Fuse

Product Details:
Place of Origin: China
Brand Name: Dissmann
Certification: UL,CCC,TUV
Model Number: HEV-P-Q
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8days
Payment Terms: T/T, L/C
Supply Ability: 1,000,000pcs

JASO-D622 EV Charger Fuse , Semicomductor Protection 400 Amp Dc Fuse

Description
Material:: Fiber Pipe Colour:: White
Rated Voltage:: 750VDC Rated Current:: 400A
Breaking Capacity:: DC50KA Standard:: UL248-20、ISO8820、 JASO-D622、ROHs
Usage:: EV Charger,semiconductor Protection Keyword:: Semiconductor Protection Fuse
High Light:

JASO-D622 EV Charger Fuse

,

Semicomductor Protection EV Charger Fuse

,

JASO-D622 400 amp dc fuse

High Breaking Capacity Fuse Semicomductor Protection Fuse EV Charger Fuse



Material:
Noumenon: fiber pipe
Pins: Copper alloy



Features:

High Breaking Capacity Fuse
Many kinds of High Breaking Capacity Fuse
Current rating:400A
Voltage rating: 750VDC

Breaking capacity:DC50KA



Product Presentation:

Rated Voltage AC690V/DC700V or lower(IEC),750V(UL) Type Protection aR
Rated Voltage 5A-800A Type Protection AC100KA,DC50KA(time constant≤15ms)
Meet the Requirement UL248-20,ISO8820,JASO-D622,Europe and RoHs Directive Remarks ——





Overall dimensions of the product(mm):

JASO-D622 EV Charger Fuse , Semicomductor Protection 400 Amp Dc Fuse 0

Size A±2 B±1.5 C±1 D±1.5 E±1.5 F±1 G±0.5 H±0.2 J±1
HT1 73.5 14.3 48 60.5 63.5 6.5 10.3 1.6 8
HT2 110 22 69 84 95.5 9 15 3.3 14.75
HT3 129 36.5 72 88 109 10.5 25 6 20.7
HT4 129 50 72 88.6 109 10.5 38 6 20.7
HT5 180 63 72 106 145 13.5 50 10 33





Current characteristic curve:

JASO-D622 EV Charger Fuse , Semicomductor Protection 400 Amp Dc Fuse 1JASO-D622 EV Charger Fuse , Semicomductor Protection 400 Amp Dc Fuse 2JASO-D622 EV Charger Fuse , Semicomductor Protection 400 Amp Dc Fuse 3JASO-D622 EV Charger Fuse , Semicomductor Protection 400 Amp Dc Fuse 4



Product type:



Model





Rated Current

(A)



I2t(A2s)

Power dissipation

(W)

Size code



Install



Pre-Arc After-Arc
HEV-P-Q-5 5A 1.6 10 1.5 HT1

Mounting Bolt M6 recommended torque 4N·m



HEV-P-Q-10 10A 3.5 19 3.8
HEV-P-Q-15 15A 9.5 73 5.4
HEV-P-Q-20 20A 25.5 176 6.0
HEV-P-Q-25 25A 42 330 7.0
HEV-P-Q-30 30A 55 420 9.0
HEV-P-Q-35 35A 33 160 11.0









HT2





Mounting Bolt M8 recommended torque 11N·m



HEV-P-Q-40 40A 75 315 12.0
HEV-P-Q-45 45A 95 430 12.0
HEV-P-Q-50 50A 135 590 12.5
HEV-P-Q-60 60A 205 940 14.8
HEV-P-Q-70 70A 300 1980 17.5
HEV-P-Q-80 80A 350 2350 20.5
HEV-P-Q-90 90A 410 2630 24.0
HEV-P-Q-100 100A 530 3450 26.5
HEV-P-Q-125 125A 1700 7200 27









HT3















Mounting Bolt M10 recommended torque 20N·m



HEV-P-Q-150 150A 2750 11000 34
HEV-P-Q-175 175A 4100 16000 35
HEV-P-Q-200 200A 5400 21000 42
HEV-P-Q-225 225A 7500 30000 45
HEV-P-Q-250 250A 9700 41000 47
HEV-P-Q-275 275A 12000 58000 51
HEV-P-Q-M300 300A 16500 70000 56









HT4



HEV-P-Q-M325 325A 20000 82000 61
HEV-P-Q-M350 350A 23000 94000 63
HEV-P-Q-M400 400A 30000 123000 76
HEV-P-Q-300 300A 16500 70000 56
HEV-P-Q-325 325A 20000 82000 61
HEV-P-Q-350 350A 23000 94000 63
HEV-P-Q-400 400A 30000 123000 76
HEV-P-Q-450 450A 35000 135000 95
HEV-P-Q-500 500A 44000 165000 108
HEV-P-Q-600 600A 48000 210000 115



HT5



Mounting Bolt M12 recommended torque 28N·m



HEV-P-Q-700 700A 53000 298000 125
HEV-P-Q-800 800A 75000 445000 140
