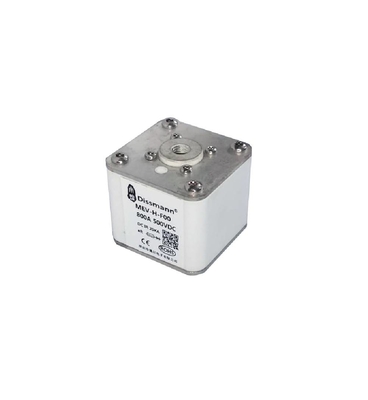

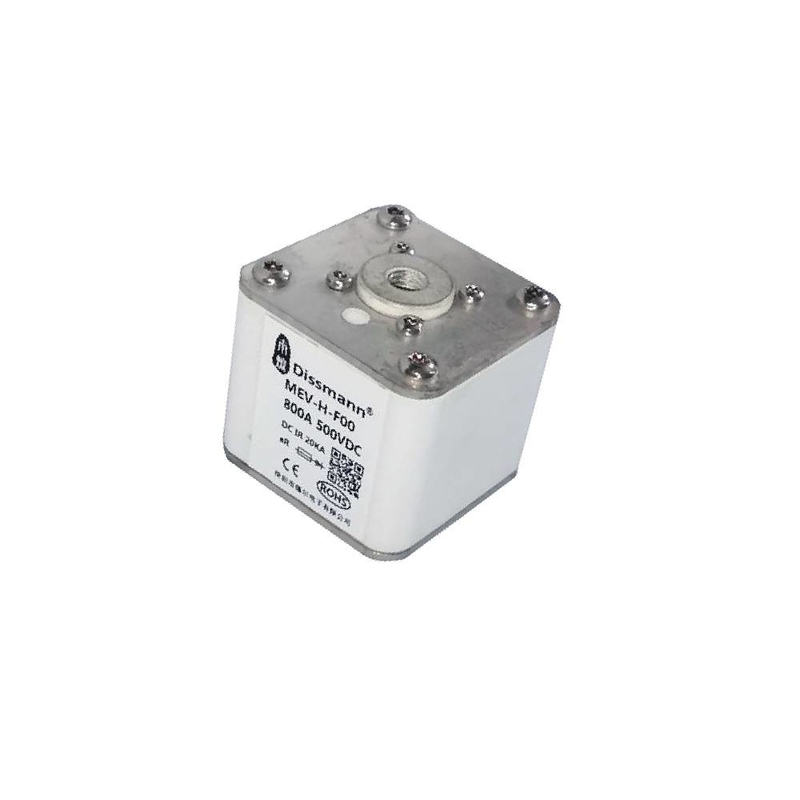

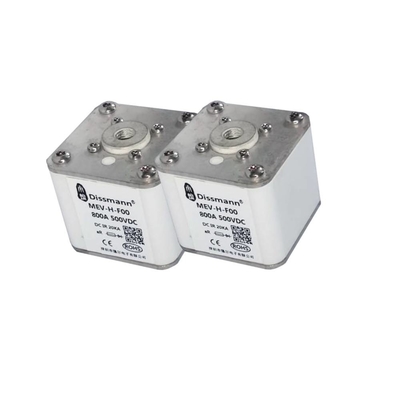

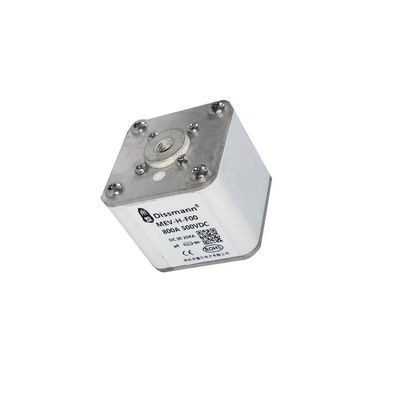

800A Semiconductor Fuses , IEC60269 High Breaking Capacity Fuse

800A Semiconductor Fuses , IEC60269 High Breaking Capacity Fuse
800A Semiconductor Fuses , IEC60269 High Breaking Capacity Fuse 800A Semiconductor Fuses , IEC60269 High Breaking Capacity Fuse 800A Semiconductor Fuses , IEC60269 High Breaking Capacity Fuse 800A Semiconductor Fuses , IEC60269 High Breaking Capacity Fuse

Large Image :  800A Semiconductor Fuses , IEC60269 High Breaking Capacity Fuse

Product Details:
Place of Origin: China
Brand Name: Dissmann
Certification: CCC
Model Number: MEV-H-F00
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8days
Payment Terms: T/T, L/C
Supply Ability: 1,000,000pcs

800A Semiconductor Fuses , IEC60269 High Breaking Capacity Fuse

Description
Material:: Electric Wood Shell Colour:: White
Rated Voltage:: 500VDC Rated Current:: 800A
Breaking Capacity:: DC20KA Standard:: UL248-13、ISO8820、 JASO-D622、IEC60269、ROHs
Usage:: Semiconductor Fuse,charging Pile Fuse,PV Keyword:: Semiconductor Fuse
High Light:

800A Semiconductor Fuses

,

IEC60269 Semiconductor Fuses

,

800A High Breaking Capacity Fuse

European Square Fuse High Breaking Capacity Fuse 500volt DC Fuse

Material:
Noumenon: electric wood shell
Pins: Copper alloy


Features:
Automotive Cartridge Fuse
Many kinds of Automotive Cartridge Fuse
Current rating: 800A
Voltage rating: 500VDC

Breaking capacity:DC20KA

Product Presentation:

Rated Voltage

DC500V,AC690V

Type Protection

aR
Rated Current 400A-1250A

Breaking Capacity

DC10KA

(time constant ≤10ms)

Meet the Requirement

UL248-13,ISO8820,JASO-D622,IEC60269

EU and RoHS Directive

Remarks

 —


Product type:

Model

Product code

Rated current

( A )

I²t(A²Sec)

Power consumption

( W )

Pre-ArcAfter-Arc
MEV-H-F00MEV-H-F00-400400A135009100065
MEV-H-F00-450450A1700012000070
MEV-H-F00-500500A2500017000072
MEV-H-F00-550550A3400023000075
MEV-H-F00-630630A5200035000080
MEV-H-F00-700700A6950046500085
MEV-H-F00-800800A10500072500095
MEV-H-F00-900900A155000850000100
MEV-H-G00MEV-H-G00-400400A110007400065
MEV-H-G00-450450A1600011000070
MEV-H-G00-500500A2150014500075
MEV-H-G00-550550A2800019000080
MEV-H-G00-630630A4100027500090
MEV-H-G00-700700A6000040000095
MEV-H-G00-800800A86000575000105
MEV-H-G00-900900A125000840000110
MEV-H-G00-10001000A1800001250000115
MEV-H-G00-11001100A2450001600000120
MEV-H-G00-12501250A3650002400000130
