Product Details:
|
| Material:: | Electric Wood Shell | Colour:: | White |
|---|---|---|---|
| Rated Voltage:: | 58VDC | Rated Current:: | 200A |
| Breaking Capacity:: | DC1500A | Standard:: | UL248-20、ISO8820、 JASO-D622、ROHs |
| Usage:: | Low Voltage Automotive | Keyword：: | Low Voltage Automotive Fuse |
| High Light: | Automotive Bolt Down Low Voltage Fuses,58VDC Low Voltage Fuses,DC1500A automotive bolt down fuse |
||

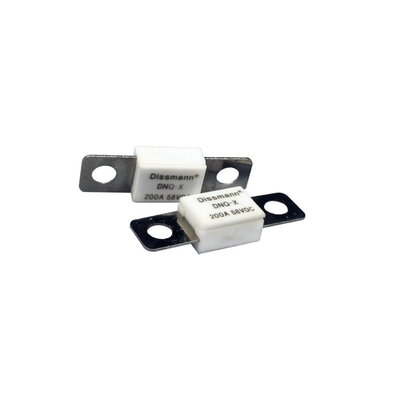

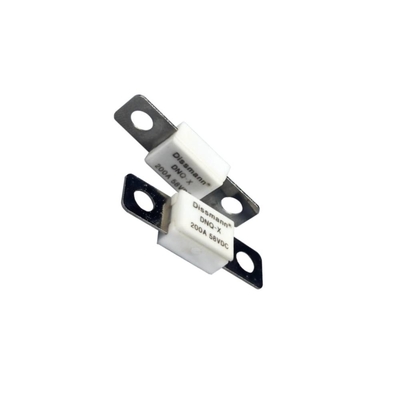

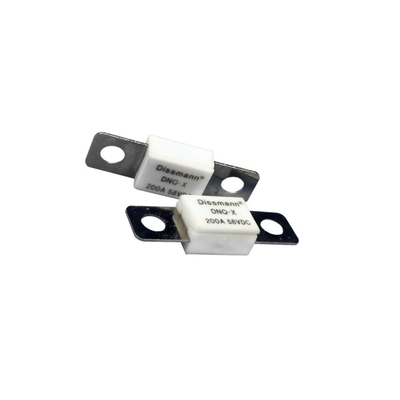

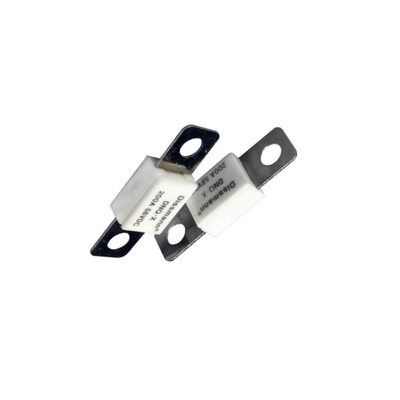

Time Lag Fuse Mini Bolt Down Fuse Low Current Fuse Low Voltage Automotive Fuse
Material:
Noumenon: electric wood shell
Pins: Copper alloy
Features:
Low Voltage Automotive Fuse
Many kinds of Low Voltage Automotive Fuse
Current rating: 200A
Voltage rating: 58VDC
Breaking capacity:DC1500A
Product Presentation:
|
Rated Voltage
|
32VDC/58VDC/80VDC |
Type Protection
|
Time-lag |
| Rated Current | 5A-200A |
Breaking Capacity |
DC1500A |
|
Meet the Requirement
|
UL248-20,ISO8820,JASO-D622, EU and Rosh Directive |
Remarks
|
UL |
Overall dimensions of the product(mm)
Manufacturing material
|
Component name |
Material |
|
Contact the foot |
Kirsite Copper alloy |
|
Noumenon |
Ceramics |
Product type
|
Model |
Rated current |
Rated voltage |
Rated voltage |
| DNQ-A | 5A～200A | 32Vdc | 1.5KA |
| DNQ-X | 5A～200A | 58Vdc | 1.5KA |
| DNQ-H | 5A～200A | 80Vdc | 1.5KA |
| DNM-A | 5A～200A | 32Vdc | 1.5KA |
| DNM-X | 5A～200A | 58Vdc | 1.5KA |
| DNM-H | 5A～200A | 80Vdc | 1.5KA |
UL Certificate
