Product Details:
|
| Material:: | Electric Wood Shell | Colour:: | Black |
|---|---|---|---|
| Rated Voltage:: | 32VDC | Rated Current:: | 10A-500A |
| Breaking Capacity:: | DC2700A | Standard:: | UL248-13、ISO8820、 JASO-D622、ROHs |
| Usage:: | Low Voltage Electric Automobile,charging Pile Module | Keyword:: | Low Voltage Electric Automobile Fuse |
| High Light: | ISO8820 Low Voltage Fuses,32VDC Low Voltage Fuses,ISO8820 500 amp anl fuse |
||

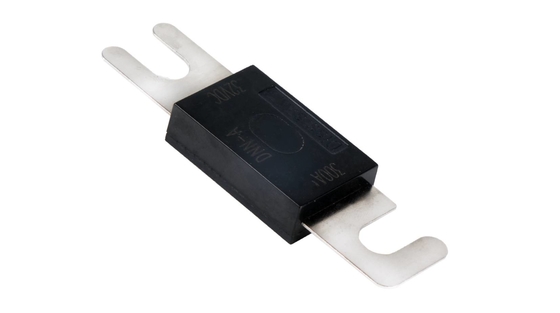

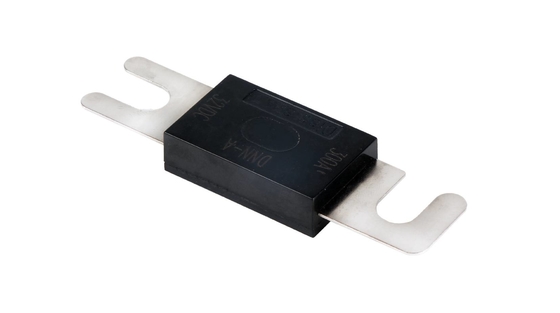

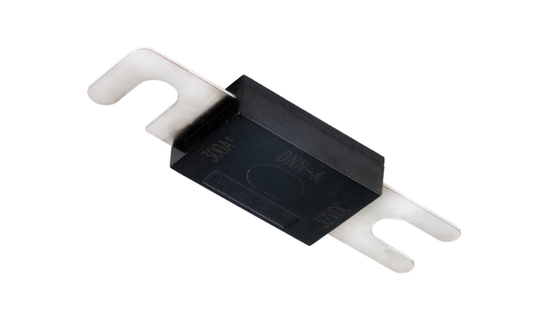

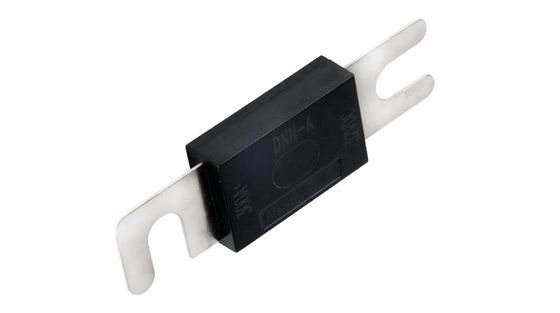

Time Lag Fuse 32volt DC Fuse Low Voltage Automotive Fuse Mini Fuse
Material:
Noumenon: Electric wood shell
Pins: Copper alloy
Product Presentation:
| Rated Voltage | 32VDC | Type Protection | Time-lag |
| Rated Current | 10A-500A | Breaking Capacity | DC2700A |
| Meet the Requirement | UL248-13,ISO8820,JASO-D622, Europe and RoHs Directive | Remarks | UL |
Overall dimensions of the product(mm)
Manufacturing material
Component name | Material |
Contact the foot | Copper alloy |
Noumenon | Electric wood shell |
Performance criteria
| Load | Opening time | |
| 10A～500A | ||
| min | max | |
| 110% | 14400 | ∞ |
| 160% | 10 | ∞ |
| 200%(200A or lower) | 0 | 100 |
| 200%(200A above | 0 | 300 |
| 250%(200A or lower) | 0 | 60 |
| 250%(200A above) | 0.8 | 120 |
| 600% | 0.02 | 10 |
| Model | Product code | Rated current(A) | Installation requirement |
| DNN-A | DNN-A-35 | 35 | Install bolt M8, recommended torque 10N·m ±1 N·m |
| DNN-A-40 | 40 | ||
| DNN-A-50 | 50 | ||
| DNN-A-60 | 60 | ||
| DNN-A-80 | 80 | ||
| DNN-A-100 | 100 | ||
| DNN-A-125 | 125 | ||
| DNN-A-130 | 130 | ||
| DNN-A-150 | 150 | ||
| DNN-A-175 | 175 | ||
| DNN-A-200 | 200 | ||
| DNN-A-225 | 225 | ||
| DNN-A-250 | 250 | ||
| DNN-A-275 | 275 | ||
| DNN-A-300 | 300 | ||
| DNN-A-325 | 325 | ||
| DNN-A-350 | 350 | ||
| DNN-A-400 | 400 | ||
| DNN-A-425 | 425 | ||
| DNN-A-450 | 450 | ||
| DNN-A-500 | 500 |
UL Certificate:
