Product Details:
|
| Material:: | Electric Wood Shell | Colour:: | Brown |
|---|---|---|---|
| Rated Voltage:: | 58VDC | Rated Current:: | 1A-40A |
| Breaking Capacity:: | DC1000A | Standard:: | UL248、ISO8820、ROHs |
| Usage:: | Low Voltage Automotive | Keyword:: | Low Voltage Automotive Fuse |
| High Light: | 58V Low Voltage Fuses,ROHs Low Voltage Fuses,1 amp fast blow fuse |
||

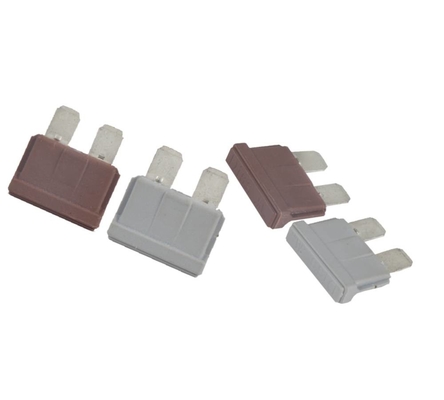

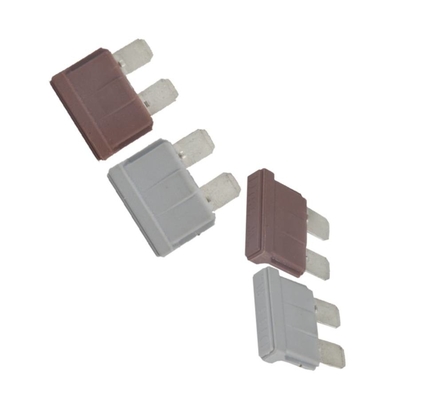

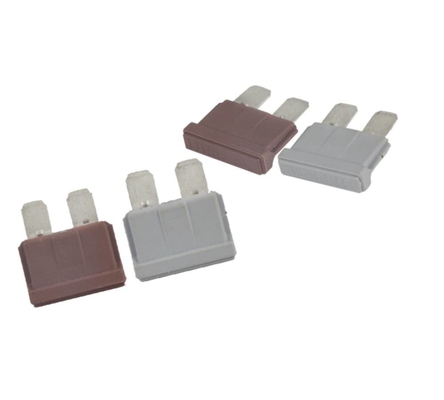

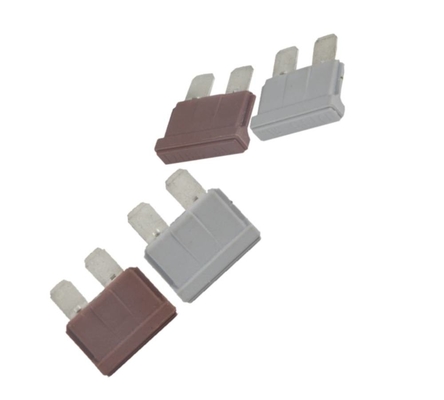

Low Voltage Automotive Fuse Fast Blow Cartridge Fuse Low Current Fuse
Material:
Noumenon: electric wood shell
Pins: Copper alloy
Product Presentation:
|
Rated Voltage
|
58VDC |
Characteristic
|
Fast Blowing |
| Rated Current | 1A-40A |
Breaking Capacity
|
DC1000A |
|
Meet the Requirement
|
UL248,ISO8820, EU and Rosh Directive |
Remarks
|
UL |
Overall dimensions of the product(mm)
Product type
|
Model
|
Product code
|
Rated current
|
I²t (A²Sec) |
Voltage drop
|
Pigment
|
| DFN-X | DFN-X-1 | 1 | 0.4 | 174 | (Black) |
| DFN-X-2 | 2 | 1.5 | 140 | (Gray) | |
| DFN-X-3 | 3 | 6.3 | 137 | (Violet) | |
| DFN-X-4 | 4 | 13 | 135 | (Pink) | |
| DFN-X-5 | 5 | 25 | 125 | (Tan) | |
| DFN-X-7.5 | 7.5 | 56 | 115 | (Brown) | |
| DFN-X-10 | 10 | 110 | 110 | (Red) | |
| DFN-X-15 | 15 | 295 | 102 | (Blue) | |
| DFN-X-20 | 20 | 480 | 96 | (Yellow) | |
| DFN-X-25 | 25 | 1000 | 90 | (Clear) | |
| DFN-X-30 | 30 | 1460 | 86 | (Green) | |
| DFN-X-35 | 35 | 2205 | 88 | (Dark green) | |
| DFN-X-40 | 40 | 3200 | 95 | (Orange) |
Currentcharacteristiccurve
Performance criteria
| Test current item(A) | Current | Minimum time(s) | Maximum time(s) |
| 110% | 1A-40A | 3600 | ∞ |
| 150% | 1A-40A | 0.5 | 300 |
| 200% | 1A-40A | 0.15 | 20 |
| 350% | 1A-40A | 0.04 | 0.5 |
| 600% | 1A-40A | 0.02 | 0.1 |
Test equipment
