Product Details:
|
| Material:: | Electric Wood Shell | Colour:: | White |
|---|---|---|---|
| Rated Voltage:: | 80VDC | Rated Current:: | 50A |
| Breaking Capacity:: | DC1000A | Standard:: | UL248-13、 ISO8820、ROHs |
| Usage:: | Low Voltage Automobile,charging Pile Module | Keyword：: | Low Voltage Automobile |
| High Light: | Fast Blow Low Voltage Fuses,Dissmann Low Voltage Fuses,50 amp dc fuse |
||

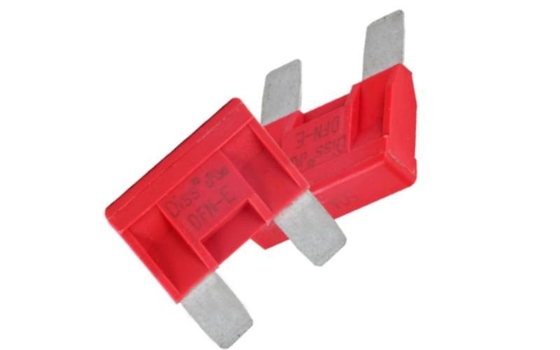

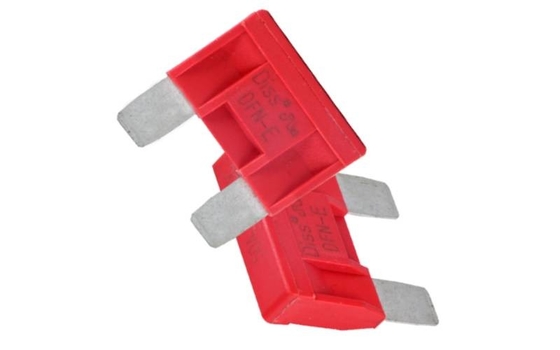

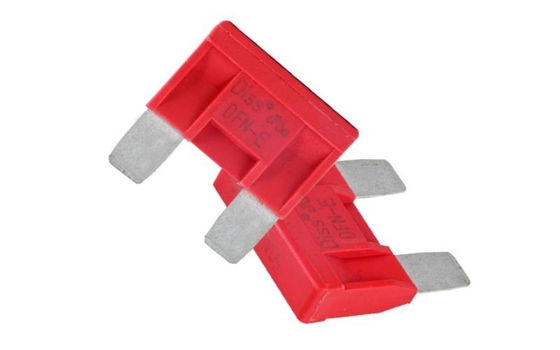

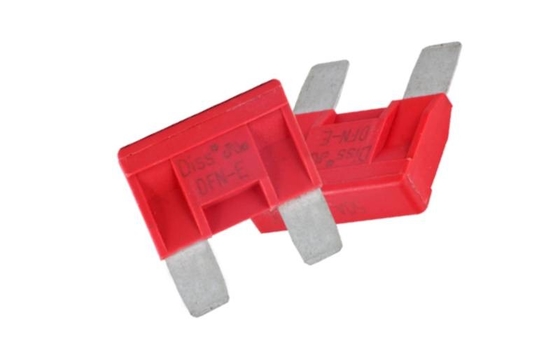

Low Voltage Automotive Fuse Fast Blow Fuse Low Current Cartridge Fuse
Material:
Noumenon: electric wood shell
Pins: Copper alloy
Product Presentation:
|
Rated Voltage 额定电压 |
80VDC |
Characteristic 特性 |
F快断 |
| Rated Current 额定电流 | 20A-60A |
Breaking Capacity 分断能力 |
DC1000A |
|
Meet the Requirement 符合要求 |
UL248-13,ISO8820, 欧盟和RoHS 指令 |
Remarks 备注 |
UL |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
产品型号/Product type
|
Model 型号 |
Product code 产品代码 |
Rated current 额定电流 A |
I²t (A²Sec) |
Voltage drop 电压降 mV |
Pigment 颜色 |
| DFN-E | DFN-E-20 | 20 | 3500 | 100 | 黄色(Yellow) |
| DFN-E-30 | 30 | 8200 | 97 | 绿色(Green) | |
| DFN-E-40 | 40 | 14200 | 93 | 橙色(Orange) | |
| DFN-E-50 | 50 | 22500 | 90 | 红色(red) | |
| DFN-E-60 | 60 | 23000 | 95 | 蓝色(Blue) |
电流特性曲线图/Currentcharacteristiccurve
性能标准/Performance criteria
|
测试电流项目 Test current item(A) |
电流 Current |
最小时间 Minimum time(s) |
最大时间 Maximum time(s) |
| 110% | 20A-60A | 360000s | - |
| 150% | 20A-60A | - | 1800s |
| 200% | 20A-60A | 2s | 60s |
| 350% | 20A-60A | 0.20s | 7s |
| 600% | 20A-60A | 0.040s | 1s |
