Product Details:
|
| Material:: | Electric Wood Shell | Colour:: | Black |
|---|---|---|---|
| Rated Voltage:: | 58VDC | Rated Current:: | 300A |
| Breaking Capacity:: | DC2700A | Standard:: | UL248-13、ISO8820、 JASO-D622、ROHs |
| Usage:: | 5G Communication Module,automotive | Keyword：: | Automotive Cartridge Fuse |
| High Light: | 300 amp inline fuse,58VDC car cartridge fuse,Electric Wood Shell car cartridge fuse |
||

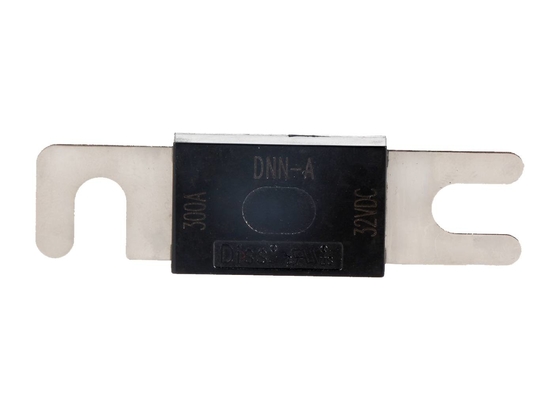

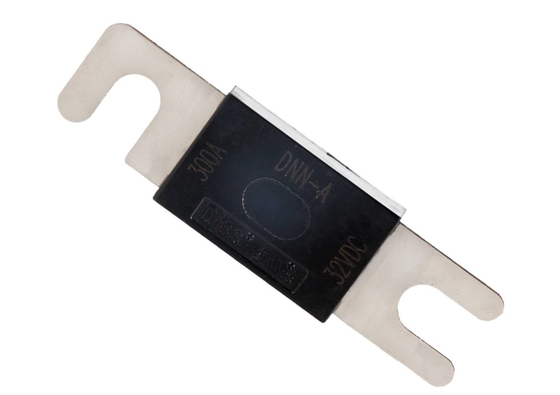

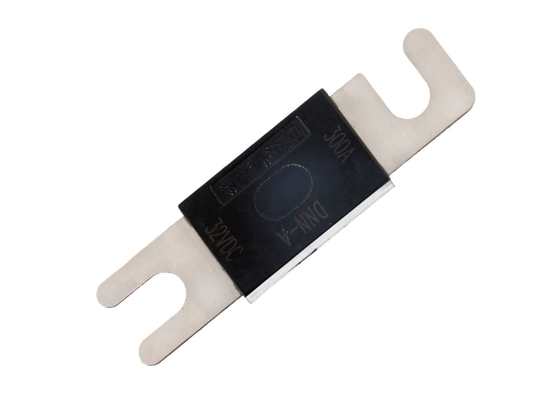

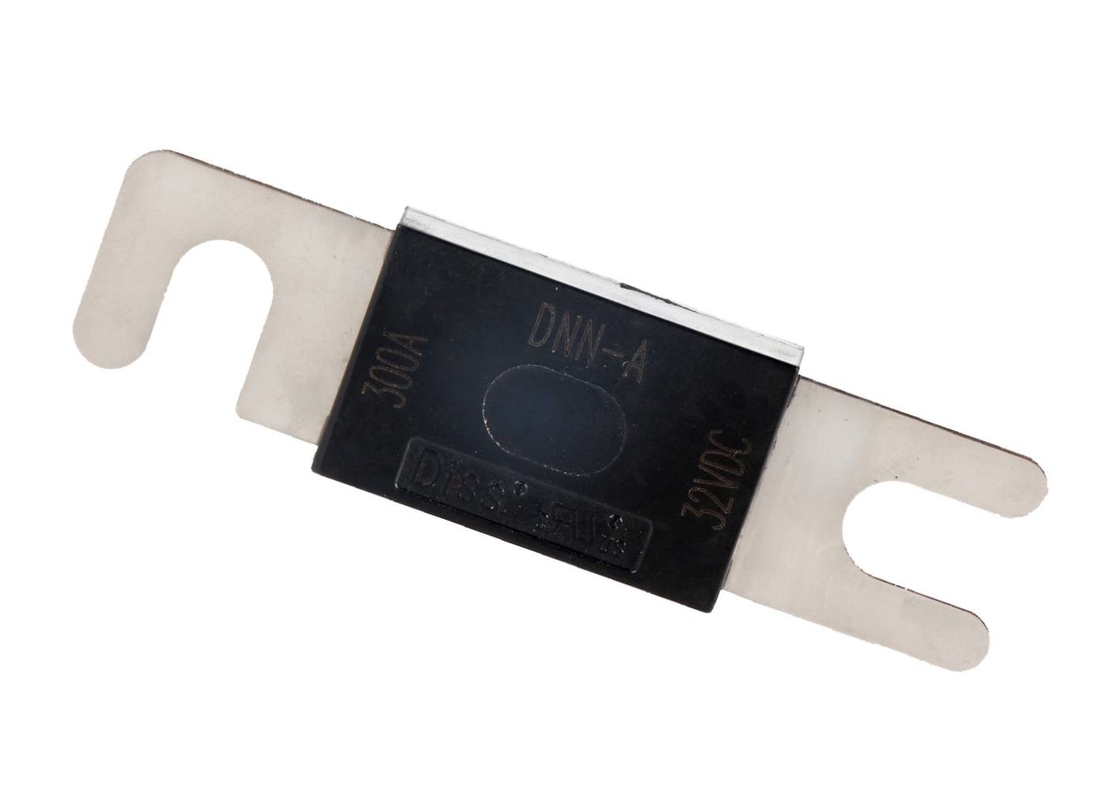

Time Lag Fuse Automotive Cartridge Fuse Electric Wood Shell Fuse
Material:
Noumenon: electric wood shell
Pins: Copper alloy
Features:
Automotive Cartridge Fuse
Many kinds of Automotive Cartridge Fuse
Current rating: 300A
Voltage rating: 58VDC
Breaking capacity:DC2700A
Product Presentation:
|
Rated Voltage |
58VDC |
Type Protection |
Time-lag |
| Rated Current | 10A-500A |
Breaking Capacity |
DC2700A |
|
Meet the Requirement
|
UL248-13,ISO8820,JASO-D622, EU and Rosh Directive |
Remarks |
UL |
Overall dimensions of the product(mm)
Manufacturing material
|
Component name |
Material |
|
Contact the foot
|
Copper alloy |
|
Noumenon |
Electric wood shell |
Performance criteria
| oad(Test Current) | Opening time(Fusing Time) | |
| 10A～500A | ||
| min | max | |
| 110% | 14400 | ∞ |
| 160% | 10 | ∞ |
| 200%(200A及以下) | 0 | 100 |
| 200%(200A以上) | 0 | 300 |
| 250%(200A及以下) | 0 | 60 |
| 250%(200A以上) | 0.8 | 120 |
| 600% | 0.02 | 10 |
| Model | Product code | Rated current | Installation requirement |
| DNN-X | DNN-X-35 | 35 |
Install bolt M8, recommended torque 10N·m ±1 N·m |
| DNN-X-40 | 40 | ||
| DNN-X-50 | 50 | ||
| DNN-X-60 | 60 | ||
| DNN-X-80 | 80 | ||
| DNN-X-100 | 100 | ||
| DNN-X-125 | 125 | ||
| DNN-X-130 | 130 | ||
| DNN-X-150 | 150 | ||
| DNN-X-175 | 175 | ||
| DNN-X-200 | 200 | ||
| DNN-X-225 | 225 | ||
| DNN-X-250 | 250 | ||
| DNN-X-275 | 275 | ||
| DNN-X-300 | 300 | ||
| DNN-X-325 | 325 | ||
| DNN-X-350 | 350 | ||
| DNN-X-400 | 400 | ||
| DNN-X-425 | 425 | ||
| DNN-X-450 | 450 | ||
| DNN-X-500 | 500 |
