Product Details:
|
| Material:: | Electric Wood Shell | Colour:: | Black |
|---|---|---|---|
| Rated Voltage:: | 150VDC | Rated Current:: | 200A |
| Breaking Capacity:: | DC2700A | Standard:: | UL248-13、ISO8820、 JASO-D622、ROHs |
| Usage:: | 5G Communication Module,automotive | Keyword：: | Automotive Cartridge Fuse |
| High Light: | 200 amp dc fuse,150VDC 5G Communication Module Fuses,Black 5G Communication Module Fuses |
||

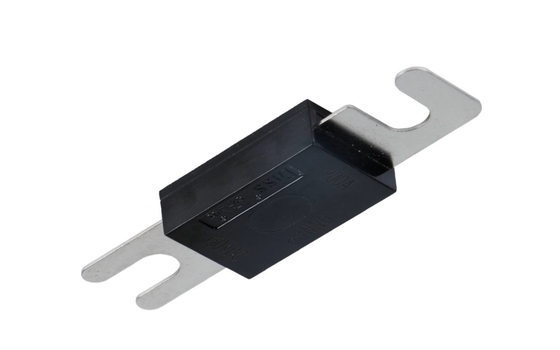

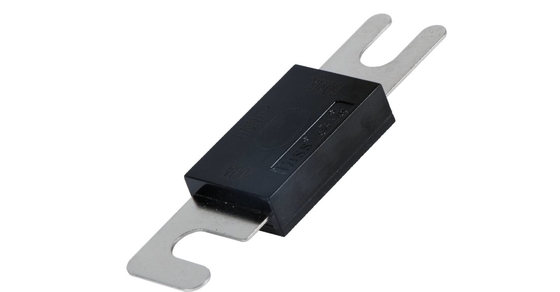

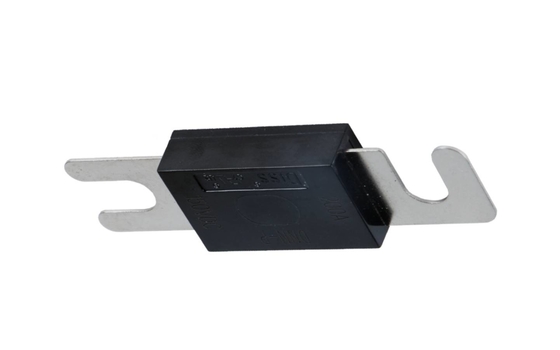

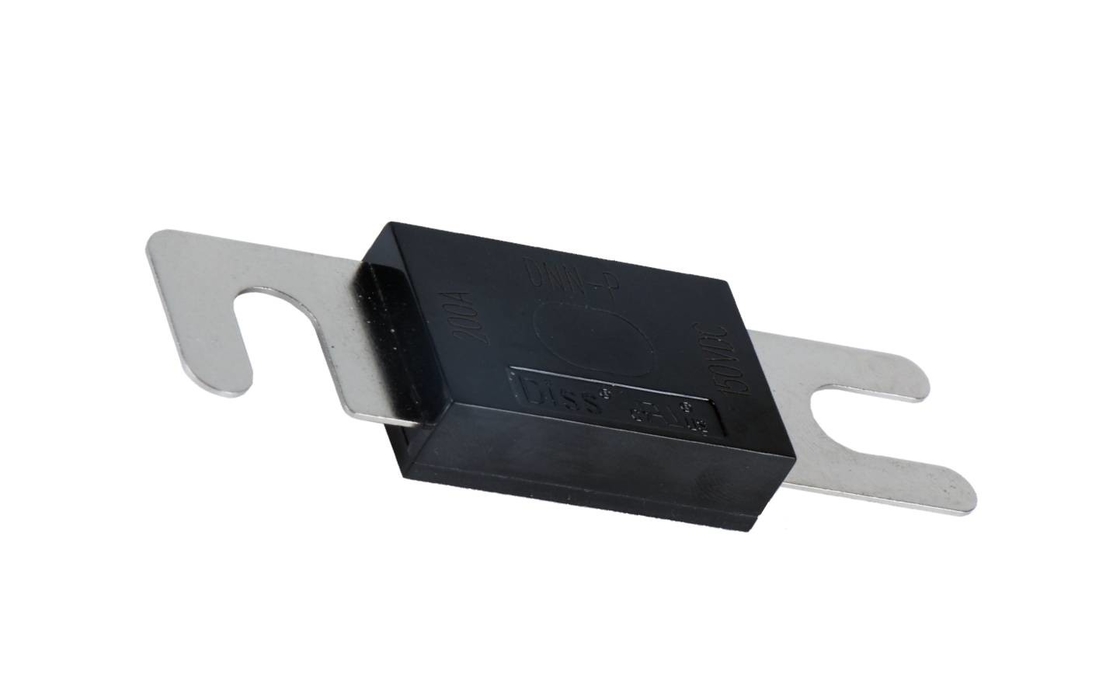

Time Lag Fuse Automotive Fuse Low Current Fuse 5G Communication Module Fuses
Material:
Noumenon: lectric wood shell
Pins: Copper alloy
Product Presentation:
|
Rated Voltage |
80VDC/125VAC |
Type Protection |
Time-lag |
| Rated Current | 10A-500A |
Breaking Capacity |
DC2700A |
|
Meet the Requirement
|
UL248-13,ISO8820,JASO-D622, Europe and RoHs directive |
Remarks
|
UL |
Overall dimensions of the product(mm)
Manufacturing material
|
Component name |
Material |
|
Contact the foot |
Copper alloy |
|
Noumenon |
Electric wood shell |
Performance criteria
| Load | Opening time | |
| 10A～500A | ||
| Minimum time(s) | Maximum time(s) | |
| 110% | 14400 | ∞ |
| 160% | 10 | ∞ |
| 200%(200A or lower ) | 0 | 100 |
| 200%(200A above) | 0 | 300 |
| 250%(200A or lower) | 0 | 60 |
| 250%(200A above) | 0.8 | 120 |
| 600% | 0.02 | 10 |
Product Characteristic Data:
| Model | Product code |
Rated current (A) |
Voltage drop (mV) |
Installation requirement |
| DNN-H | DNN-H-35 | 35 | 130 |
Install bolt M8, recommended torque 10N·m ±1 N·m
|
| DNN-H-40 | 40 | 125 | ||
| DNN-H-50 | 50 | 120 | ||
| DNN-H-60 | 60 | 116 | ||
| DNN-H-80 | 80 | 112 | ||
| DNN-H-100 | 100 | 110 | ||
| DNN-H-125 | 125 | 105 | ||
| DNN-H-130 | 130 | 100 | ||
| DNN-H-150 | 150 | 96 | ||
| DNN-H-175 | 175 | 90 | ||
| DNN-H-200 | 200 | 86 | ||
| DNN-H-225 | 225 | 83 | ||
| DNN-H-250 | 250 | 80 | ||
| DNN-H-275 | 275 | 77 | ||
| DNN-H-300 | 300 | 75 | ||
| DNN-H-325 | 325 | 83 | ||
| DNN-H-350 | 350 | 81 | ||
| DNN-H-400 | 400 | 80 | ||
| DNN-H-425 | 425 | 78 | ||
| DNN-H-450 | 450 | 78 | ||
| DNN-H-500 | 500 | 76 |
Current characteristic curve
UL Certificate:
