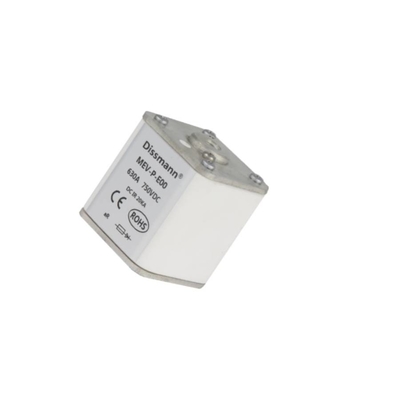

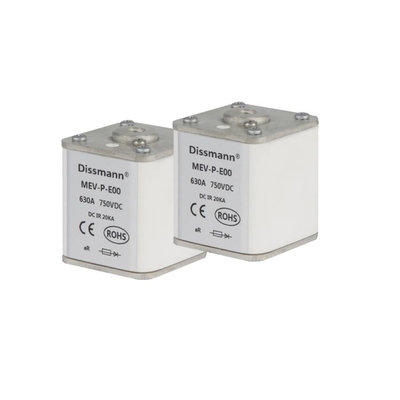

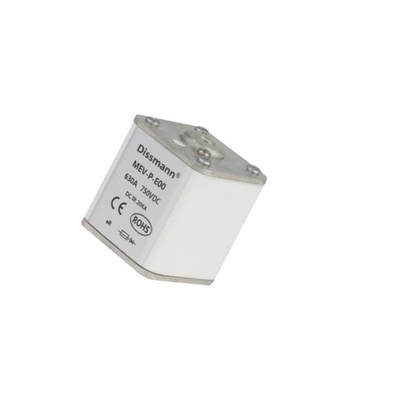

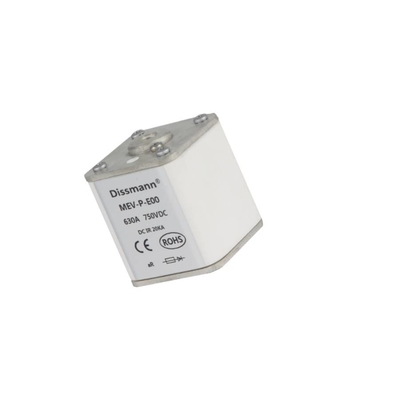

Semiconductor Electric Vehicle Fuses High Voltage 750VDC 630A

Semiconductor Electric Vehicle Fuses High Voltage 750VDC 630A
Semiconductor Electric Vehicle Fuses High Voltage 750VDC 630A Semiconductor Electric Vehicle Fuses High Voltage 750VDC 630A Semiconductor Electric Vehicle Fuses High Voltage 750VDC 630A Semiconductor Electric Vehicle Fuses High Voltage 750VDC 630A

Large Image :  Semiconductor Electric Vehicle Fuses High Voltage 750VDC 630A

Product Details:
Place of Origin: China
Brand Name: Dissmann
Certification: CCC
Model Number: MEV-P-E00
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8days
Payment Terms: T/T, L/C
Supply Ability: 1,000,000pcs

Semiconductor Electric Vehicle Fuses High Voltage 750VDC 630A

Description
Material:: Ceramic Colour:: White
Rated Voltage:: 750VDC Rated Current:: 630A
Breaking Capacity:: DC20KA Standard:: UL248-13、ISO8820、 JASO-D622、IEC60269、ROHs
Usage:: Energy Storage System,Solar Panel,PV Keyword:: Solar Battery Fuse
High Light:

750VDC Electric Vehicle Fuses

,

630A Electric Vehicle Fuses

,

Semiconductor High Voltage Automotive Fuse

European Square Fuse Semiconductor Fuse High Voltage Automotive Fuse



Material:
Noumenon: Ceramic
Pins: Alloy



Product Presentation:

Rated Voltage



DC600V,AC600V

or lower

Type Protection



aR
Rated Current  40A-630A

Breaking Capacity



DC10KA

(time constant≤10ms)

Meet the Requirement



UL248-13,ISO8820,JASO-D622,IEC60269

EU and Rosh Directive

Remarks







Overall dimensions of the product(mm)

Semiconductor Electric Vehicle Fuses High Voltage 750VDC 630A 0



Model

Product code

Rated current



I²t(A²Sec)

Power consumption

Pre-arc Total
MEV-N-E00 MEV-N-E00-40 40A 40 270 9
MEV-N-E00-50 50A 77 515 11
MEV-N-E00-63 63A 115 770 14
MEV-N-E00-80 80A 185 1250 18
MEV-N-E00-100 100A 360 2450 21
MEV-N-E00-125 125A 550 3700 26
MEV-N-E00-160 160A 1100 7500 30
MEV-N-E00-200 200A 2200 15000 35
MEV-N-E00-250 250A 4200 28500 40
MEV-N-E00-315 315A 7000 46500 50
MEV-N-E00-350 350A 10000 68500 55
MEV-N-E00-400 400A 15000 105000 60
MEV-N-E00-450 450A 21000 140000 65
MEV-N-E00-500 500A 27000 180000 70
MEV-N-E00-550 550A 34000 230000 75
MEV-N-E00-630 630A 48500 325000 80



Current characteristic curve of Semiconductor Electric Vehicle Fuses

Semiconductor Electric Vehicle Fuses High Voltage 750VDC 630A 1



Allowable current curve

Semiconductor Electric Vehicle Fuses High Voltage 750VDC 630A 2



Test equipment
Semiconductor Electric Vehicle Fuses High Voltage 750VDC 630A 3

Production equipment
Semiconductor Electric Vehicle Fuses High Voltage 750VDC 630A 4
Semiconductor Electric Vehicle Fuses High Voltage 750VDC 630A 5

Semiconductor Electric Vehicle Fuses High Voltage 750VDC 630A 6
