Product Details:
|
| Material:: | Ceramic | Colour:: | White |
|---|---|---|---|
| Rated Voltage:: | 700VDC | Rated Current:: | 40A |
| Breaking Capacity:: | DC10KA | Standard:: | UL248-13、ISO8820、 JASO-D622、IEC60269、ROHS |
| Usage:: | PV Inverter,energy Storage,industrial Power Cabinet | Keyword:: | PV Inverter Fuse |
| High Light: | JASO-D622 Electric Vehicle Fuses,400A Electric Vehicle Fuses,750VDC Energy Storage Fuse |
||

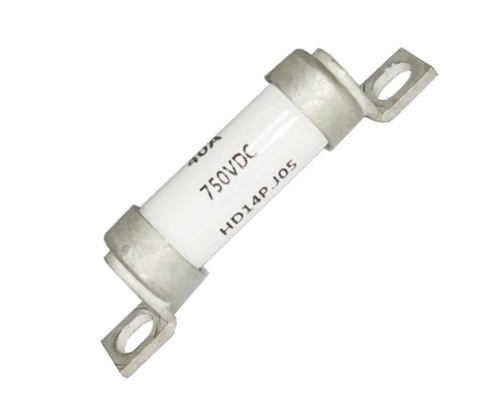

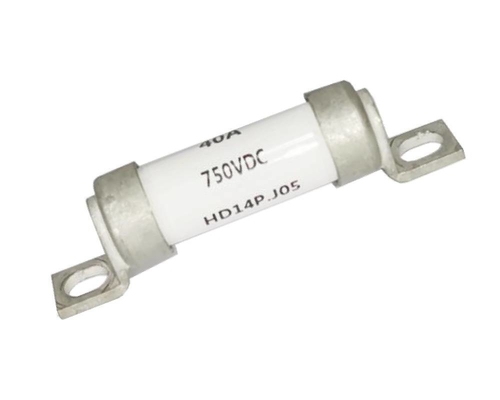

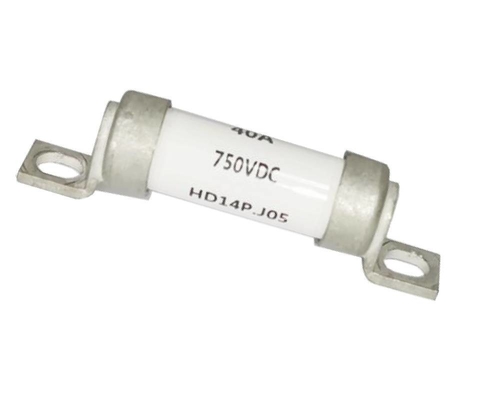

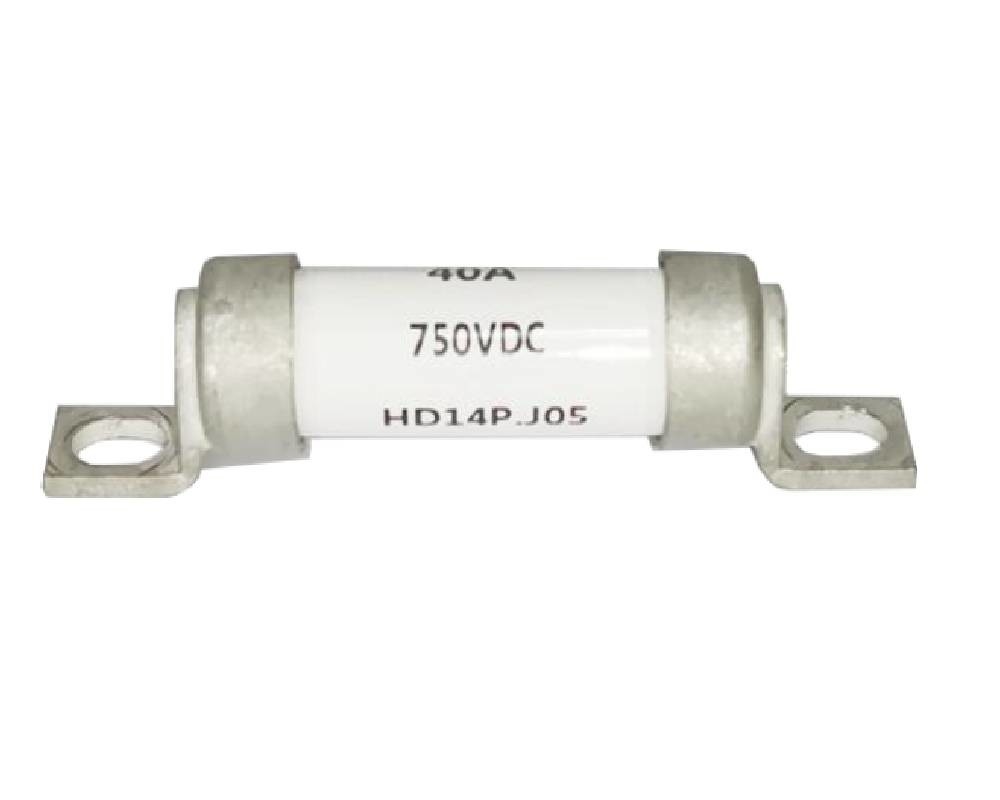

European Square Fuse PV Fuse Energy Storage Fuse Industrial Power Cabinet Fuse
Material:
Noumenon:Ceramic
Pins: Alloy
Features:
Pv Inverter Fuse
Many kinds of Pv Inverter Fuse
Current rating: 400A
Voltage rating: 750VDC
Breaking capacity:DC10KA
Product Presentation:
|
Rated Voltage |
400VAC～700VDC |
Characteristic |
aR |
| Rated Current | 1A-63A |
Breaking Capacity |
30KA |
|
Meet the Requirement |
UL248-13, EU and Rosh Directive |
Remarks |
UL |
Overall dimensions of the product(mm)
Product type
| Model |
Rated current |
Rated voltage |
Breaking capacity |
Body material |
| HD14N | 1A～63A | 700Vdc | 30KA |
Ceramic |
| HD14X | 1A～63A | 690Vac | ||
| HD14D | 1A～63A | 500Vdc | ||
| HD14H | 1A～63A | 500Vac | ||
| HD14S | 1A～63A | 400Vac | ||
| HDQ14N | 1A～63A | 700Vdc | 30KA | |
| HDQ14X | 1A～63A | 690Vac | ||
| HDQ14D | 1A～63A | 500Vdc | ||
| HDQ14H | 1A～63A | 500Vac | ||
| HDQ14S | 1A～63A | 400Vac | ||
| HD14PV1 | 63A | 1000VDC | 10KA | PBT |
| 30A | 1500VDC |
