Product Details:
|
| Material:: | Ceramic | Colour:: | White |
|---|---|---|---|
| Rated Voltage:: | 750VDC | Rated Current:: | 350A |
| Breaking Capacity:: | DC50KA | Standard:: | UL248-20、ISO8820、 JASO-D622、ROHs |
| Usage:: | High Voltage Automotive,semiconductor Protection | Keyword：: | High Voltage Automotive Fuse |
| High Light: | UL248-20 High Breaking Capacity Fuse,UL248-20 Electric Vehicle Fuses,750VDC Electric Vehicle Fuses |
||

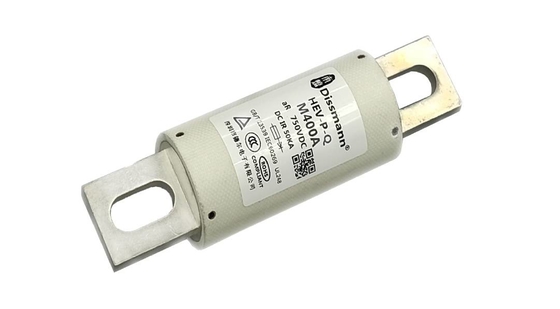

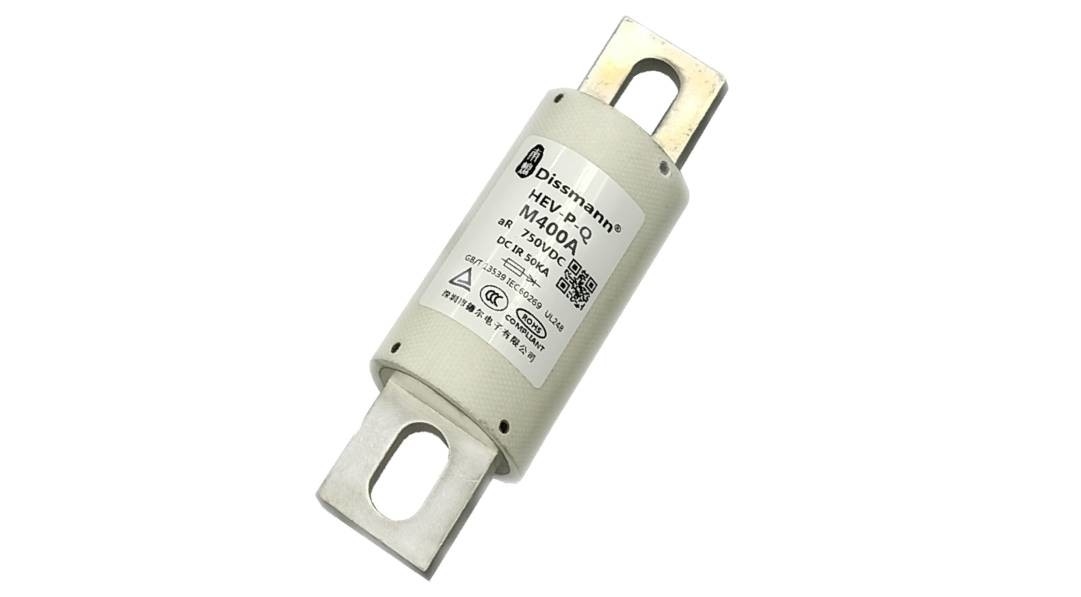

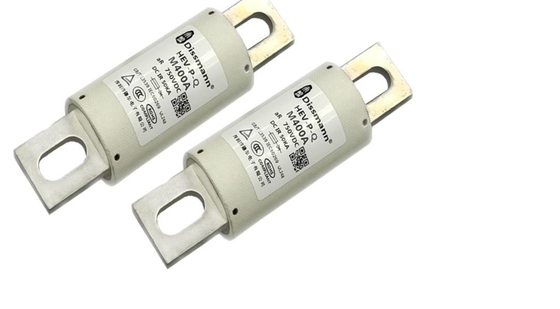

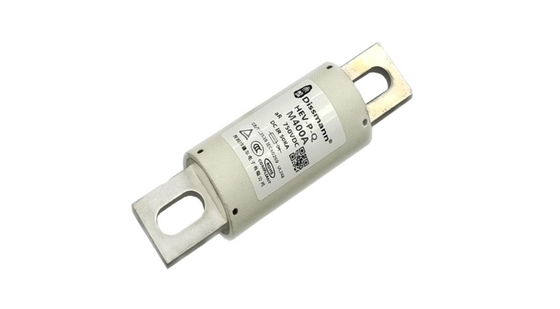

High Breaking Capacity Fuse Bolt Down Fuse Automotive Fuse Charging Pile Fuse
Material:
Noumenon: fiber pipe
Pins: Alloy
Features:
High Breaking Capacity Fuse
Many kinds of High Breaking Capacity Fuse
Current rating: 350A
Voltage rating: 750VDC
Breaking capacity:DC50KA
Product Presentation:
|
Rated Voltage 额定电压 |
AC690V/DC700V或低于(IEC),750V(UL) |
Type Protection 保护类别 |
aR |
| Rated Current 额定电流 | 5A-800A |
Breaking Capacity 分断能力 |
AC100KA,DC50KA (时间常数≤15ms) |
|
Meet the Requirement 符合要求 |
UL248-20,ISO8820,JASO-D622, 欧盟和RoHS 指令 |
Remarks 备注 |
gR数据另版提供 |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
| 尺寸代码 | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HT1 | 73.5 | 14.3 | 48 | 60.5 | 63.5 | 6.5 | 10.3 | 1.6 | 8 |
| HT2 | 110 | 22 | 69 | 84 | 95.5 | 9 | 15 | 3.3 | 14.75 |
| HT3 | 129 | 36.5 | 72 | 88 | 109 | 10.5 | 25 | 6 | 20.7 |
| HT4 | 129 | 50 | 72 | 88.6 | 109 | 10.5 | 38 | 6 | 20.7 |
| HT5 | 180 | 63 | 72 | 106 | 145 | 13.5 | 50 | 10 | 33 |
电流特性曲线图/Current characteristic curve
产品型号/Product type
|
Model 型号
|
Rated Current 额定电流A
|
I2t(A2s) |
Power dissipation 功耗W |
Size code 尺寸代码 |
Install 安装 |
|
| 弧前 | 总 | |||||
| HEV-P-Q-5 | 5A | 1.6 | 10 | 1.5 | HT1 |
Mounting Bolt M6 recommended torque 4N·m 安装螺栓M6推荐扭矩4N·m |
| HEV-P-Q-10 | 10A | 3.5 | 19 | 3.8 | ||
| HEV-P-Q-15 | 15A | 9.5 | 73 | 5.4 | ||
| HEV-P-Q-20 | 20A | 25.5 | 176 | 6.0 | ||
| HEV-P-Q-25 | 25A | 42 | 330 | 7.0 | ||
| HEV-P-Q-30 | 30A | 55 | 420 | 9.0 | ||
| HEV-P-Q-35 | 35A | 33 | 160 | 11.0 |
HT2 |
Mounting Bolt M8 recommended torque 11N·m 安装螺栓M8推荐扭矩11N·m |
| HEV-P-Q-40 | 40A | 75 | 315 | 12.0 | ||
| HEV-P-Q-45 | 45A | 95 | 430 | 12.0 | ||
| HEV-P-Q-50 | 50A | 135 | 590 | 12.5 | ||
| HEV-P-Q-60 | 60A | 205 | 940 | 14.8 | ||
| HEV-P-Q-70 | 70A | 300 | 1980 | 17.5 | ||
| HEV-P-Q-80 | 80A | 350 | 2350 | 20.5 | ||
| HEV-P-Q-90 | 90A | 410 | 2630 | 24.0 | ||
| HEV-P-Q-100 | 100A | 530 | 3450 | 26.5 | ||
| HEV-P-Q-125 | 125A | 1700 | 7200 | 27 |
HT3 |
Mounting Bolt M10 recommended torque 20N·m 安装螺栓M10推荐扭矩20N·m |
| HEV-P-Q-150 | 150A | 2750 | 11000 | 34 | ||
| HEV-P-Q-175 | 175A | 4100 | 16000 | 35 | ||
| HEV-P-Q-200 | 200A | 5400 | 21000 | 42 | ||
| HEV-P-Q-225 | 225A | 7500 | 30000 | 45 | ||
| HEV-P-Q-250 | 250A | 9700 | 41000 | 47 | ||
| HEV-P-Q-275 | 275A | 12000 | 58000 | 51 | ||
| HEV-P-Q-M300 | 300A | 16500 | 70000 | 56 |
HT4
|
|
| HEV-P-Q-M325 | 325A | 20000 | 82000 | 61 | ||
| HEV-P-Q-M350 | 350A | 23000 | 94000 | 63 | ||
| HEV-P-Q-M400 | 400A | 30000 | 123000 | 76 | ||
| HEV-P-Q-300 | 300A | 16500 | 70000 | 56 | ||
| HEV-P-Q-325 | 325A | 20000 | 82000 | 61 | ||
| HEV-P-Q-350 | 350A | 23000 | 94000 | 63 | ||
| HEV-P-Q-400 | 400A | 30000 | 123000 | 76 | ||
| HEV-P-Q-450 | 450A | 35000 | 135000 | 95 | ||
| HEV-P-Q-500 | 500A | 44000 | 165000 | 108 | ||
| HEV-P-Q-600 | 600A | 48000 | 210000 | 115 |
HT5 |
Mounting Bolt M12 recommended torque 28N·m 安装螺栓M12推荐扭矩28N·m |
| HEV-P-Q-700 | 700A | 53000 | 298000 | 125 | ||
| HEV-P-Q-800 | 800A | 75000 | 445000 | 140 | ||
