Product Details:
|
| Material:: | Fiber Pipe | Colour:: | White |
|---|---|---|---|
| Rated Voltage:: | 150VDC/240VAC | Rated Current:: | 400A |
| Breaking Capacity:: | DC20KA/AC50KA | Standard:: | UL248-20、ISO8820、 JASO-D622、ROHs |
| Usage:: | Low Voltage Automotive,charging Pile,Semiconductor Protection | Keyword：: | Low Voltage Automotive Fuse |
| High Light: | Fiber Pipe High Voltage Automotive Fuse,400A Electric Vehicle Fuses,High Voltage Electric Vehicle Fuses |
||

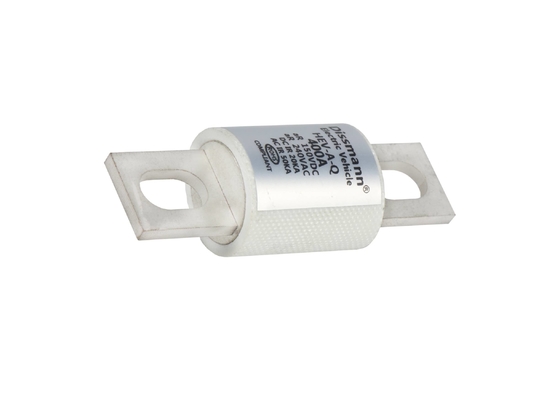

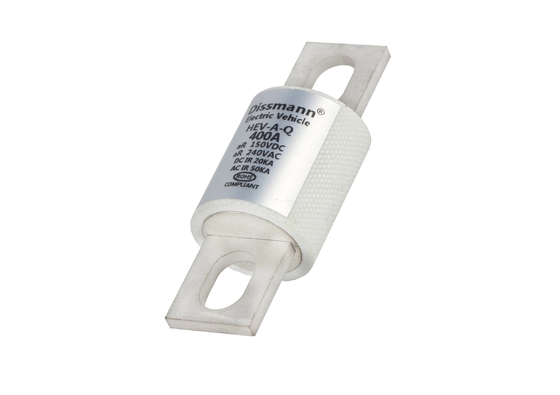

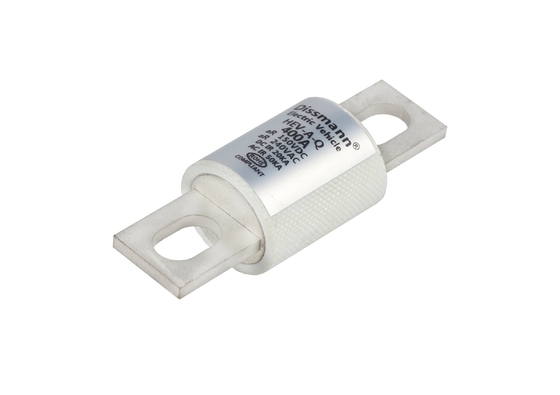

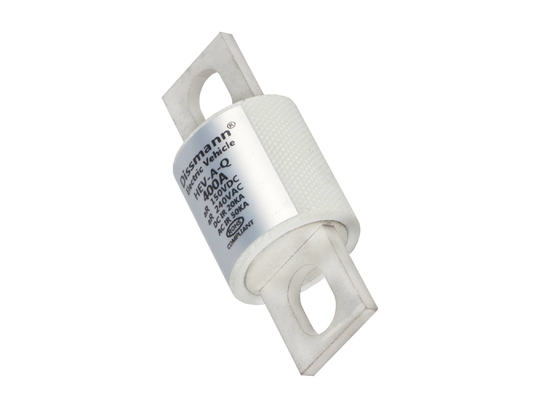

High Voltage Automotive Fuse Energy Storage Fuse EV Fuse Low Current Fuse
Material:
Noumenon: fiber pipe
Pins: Alloy
Product Presentation:
|
Rated Voltage 额定电压 |
AC250V/DC150V |
Type Protection 保护类别 |
aR |
| Rated Current 额定电流 | 5A-800A |
Breaking Capacity 分断能力 |
DC20KA (时间常数≤15ms) |
|
Meet the Requirement 符合要求 |
UL248-20,ISO8820,JASO-D622, 欧盟和RoHS 指令 |
Remarks 备注 |
gR数据另版提供 |
熔断体外形及安装尺寸/Shape and mounting dimensions of fuses
| 尺寸代码 | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HW1 | 68.2 | 25 | 29 | 44 | 53 | 9 | 18 | 3.3 | 13.5 |
| HW2 | 94 | 38 | 38 | 54 | 74.5 | 10.5 | 25 | 6 | 20.7 |
允通电流曲线/ Allowable current curve 电流特性曲线图/Current characteristic curve
150V(70-1000)A
产品型号/Product type
|
Model 型号 |
Rated Current 额定电流A |
I2t(A2s) |
Power dissipation 功耗W |
Size code 尺寸代码 |
Install 安装 |
|
| 弧前 | 总 | |||||
| HEV-A-Q-70 | 70A | 460 | 3920 | 6.8 | HW1 |
Mounting Bolt M8 recommended torque 11N·m 安装螺栓M8推荐扭矩11N·m |
| HEV-A-Q-80 | 80A | 665 | 5850 | 7.5 | ||
| HEV-A-Q-100 | 100A | 1120 | 11100 | 8.8 | ||
| HEV-A-Q-125 | 125A | 1840 | 17600 | 11.0 | ||
| HEV-A-Q-150 | 150A | 2650 | 25400 | 12.8 | ||
| HEV-A-Q-200 | 200A | 4750 | 44000 | 17.5 | ||
| HEV-A-Q-250 | 250A | 7420 | 68500 | 22.5 | ||
| HEV-A-Q-300 | 300A | 11000 | 99000 | 26.5 | ||
| HEV-A-Q-350 | 350A | 14800 | 139000 | 30.4 | ||
| HEV-A-Q-400 | 400A | 18800 | 180000 | 34.8 | ||
| HEV-A-Q-500 | 500A | 36000 | 110000 | 34.5 | HW2 |
Mounting Bolt M10 recommended torque 20N·m 安装螺栓M10推荐扭矩20N·m |
| HEV-A-Q-600 | 600A | 43500 | 125000 | 45.6 | ||
| HEV-A-Q-700 | 700A | 68000 | 198000 | 48.5 | ||
| HEV-A-Q-800 | 800A | 86000 | 255000 | 57.0 | ||
| HEV-A-Q-1000 | 1000A | 152000 | 470000 | 59.5 | ||
