Product Details:
|
| Material:: | Fiber Pipe | Colour:: | White |
|---|---|---|---|
| Rated Voltage:: | 1500VDC | Rated Current:: | 30A |
| Breaking Capacity:: | DC10KA | Standard:: | UL248-13、 IEC60269.6、ROHs |
| Usage:: | Solar Panel,pv Protection,train Base | Keyword:: | Energy Storage Fuse |
| High Light: | IEC60269.6 pv solar fuse,30 amp micro cartridge fuse,30 amp automotive fuse |
||

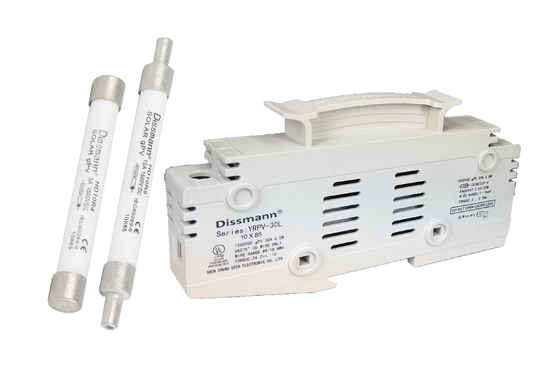

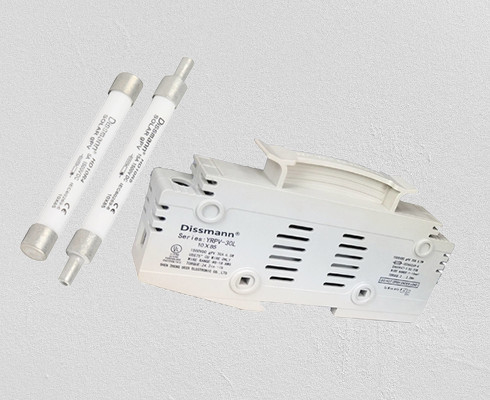

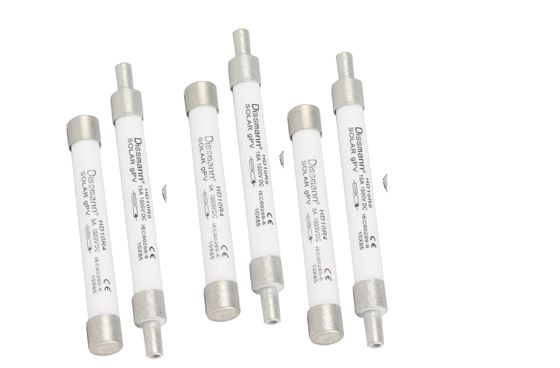

10×85 fuse energy storage fuse power bank fuse cartridge fuse
Material of Ceramic Automotive Fuse:
Noumenon: fiber pipe
Pins: Alloy
Features of Ceramic Automotive Fuse:
Energy storage fuse
Many kinds of Energy storage fuse
Current rating: 30A.
Voltage rating: 1500VDC
Breaking capacity:DC10KA
Presentation of Ceramic Automotive Fuse:
|
Rated Voltag
|
DC1500V
|
Characteristic
|
gPV/aR
|
Rated Current
|
1A-40A
|
Breaking Capacity
|
DC10KA
|
Meet the Requirement
|
UL248-13,IEC60269.6,EU and RoHS Directive
|
Remarks
|
UL,TUV
|
Overall dimensions of the product(mm)
Performance criteria
| Blowing current | Fusing time |
| 200% | ＜4min |
| 135% | ＜1h |
| 113% | ＞1h |
| 100% | ＞4h |
Current characteristic curve
Product type
| Model |
Rated current
|
Rated voltage
|
Breaking capacity
|
| HD10R4/HD10W4 | 1A～20A | 1500Vdc | 10KA |
| HD10R4.J03/HD10W4.J03 | 1A～40A | 1500Vdc | 10KA |
| HD10R5 | 1A～20A | 1500Vdc | 10KA |
| HD14R6 | 20A～40A | 1500Vdc | 10KA |
| HDPV5 | 40A | 1500Vdc | 10KA |
