Product Details:
|
| Rated Voltage: | DC58V/80V/150V | Rated Current: | 35-500A |
|---|---|---|---|
| Breaking Capacity: | DC3000A | Protection Type: | AR |
| Material: | Bakelite Shell | Installation: | Bolted Type Fuse |
| High Light: | Flat Bolted Dissmann Fuse,DNN Series Dissmann Fuse,Dissmann Fuse DC150V |
||

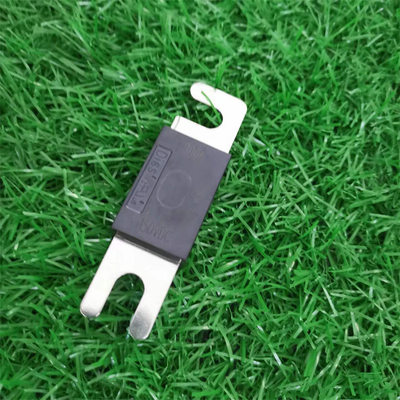

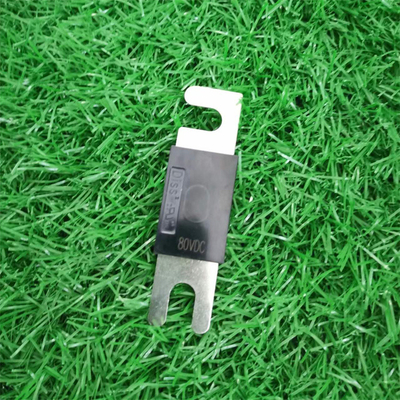

Dissmann DNN series fuse
Dimensions drawing of the DNN series fuse:
When the rated current ≤275A When the rated current ≥300A
Specific Model you can choose from our factory:
1.DNN-X 58VDC
| DNN-X 58VDC | Performance criteria | ||||
| Product code | Rated current A | Voltage Drop | Load(Testing current) | Opening Time(Fuseing time)Sec | |
| mV | Mini | Max | |||
| DNN-X-35 | 35 | 128 | 110% | 14400 | ∞ |
| DNN-X-40 | 40 | 123 | |||
| DNN-X-50 | 50 | 117 | |||
| DNN-X-60 | 60 | 114 | 160% | 10 | ∞ |
| DNN-X-80 | 80 | 110 | |||
| DNN-X-100 | 100 | 107 | |||
| DNN-X-125 | 125 | 102 | 200%(200A以下) | 0 | 100 |
| DNN-X-130 | 130 | 98 | |||
| DNN-X-150 | 150 | 94 | |||
| DNN-X-175 | 175 | 88 | 200%(200A以上) | 0 | 300 |
| DNN-X-200 | 200 | 85 | |||
| DNN-X-225 | 225 | 78 | |||
| DNN-X-250 | 250 | 75 | 250%(200A以下) | 0 | 60 |
| DNN-X-275 | 275 | 71 | |||
| DNN-X-300 | 300 | 68 | |||
| DNN-X-325 | 325 | 86 | 250%(200A以上) | 0.8 | 120 |
| DNN-X-350 | 350 | 83 | |||
| DNN-X-400 | 400 | 82 | |||
| DNN-X-425 | 425 | 80 | 600% | 0.02 | 10 |
| DNN-X-450 | 450 | 80 | |||
| DNN-X-500 | 500 | 76 | |||
2.DNN-H 80VDC
| DNN-H 80VDC | Performance criteria | ||||
| Product code | Rated current A | Voltage Drop | Load(Testing current) | Opening Time(Fuseing time)Sec | |
| mV | Mini | Max | |||
| DNN-H-35 | 35 | 130 | 110% | 14400 | ∞ |
| DNN-H-40 | 40 | 125 | |||
| DNN-H-50 | 50 | 120 | |||
| DNN-H-60 | 60 | 116 | 160% | 10 | ∞ |
| DNN-H-80 | 80 | 112 | |||
| DNN-H-100 | 100 | 110 | |||
| DNN-H-125 | 125 | 105 | 200%(200A以下) | 0 | 100 |
| DNN-H-130 | 130 | 100 | |||
| DNN-H-150 | 150 | 96 | |||
| DNN-H-175 | 175 | 90 | 200%(200A以上) | 0 | 300 |
| DNN-H-200 | 200 | 86 | |||
| DNN-H-225 | 225 | 83 | |||
| DNN-H-250 | 250 | 80 | 250%(200A以下) | 0 | 60 |
| DNN-H-275 | 275 | 77 | |||
| DNN-H-300 | 300 | 75 | |||
| DNN-H-325 | 325 | 83 | 250%(200A以上) | 0.8 | 120 |
| DNN-H-350 | 350 | 81 | |||
| DNN-H-400 | 400 | 80 | |||
| DNN-H-425 | 425 | 78 | 600% | 0.02 | 10 |
| DNN-H-450 | 450 | 78 | |||
| DNN-H-500 | 500 | 76 | |||
3.DNN-P 150VDC
| DNN-P 150VDC | Performance criteria | ||||
| Product code | Rated current A | Voltage Drop | Load(Testing current) | Opening Time(Fuseing time)Sec | |
| mV | Mini | Max | |||
| DNN-P-35 | 35 | 130 | 150%(小于或等于200A) | 60 | ∞ |
| DNN-P-40 | 40 | 125 | |||
| DNN-P-50 | 50 | 120 | |||
| DNN-P-60 | 60 | 116 | 160%(大于200A) | 10 | 3600 |
| DNN-P-80 | 80 | 112 | |||
| DNN-P-100 | 100 | 110 | |||
| DNN-P-125 | 125 | 105 | 220%(小于或等于200A) | 0 | 200 |
| DNN-P-130 | 130 | 100 | |||
| DNN-P-150 | 150 | 96 | |||
| DNN-P-175 | 175 | 90 | 220%(大于200A) | 0 | 150 |
| DNN-P-200 | 200 | 86 | |||
| DNN-P-225 | 225 | 83 | |||
| DNN-P-250 | 250 | 80 | 250%小于或等于200A) | 0.8 | 120 |
| DNN-P-275 | 275 | 77 | |||
| DNN-P-300 | 300 | 75 | |||
| DNN-P-325 | 325 | 83 | 250%(大于200A) | 0.8 | 80 |
| DNN-P-350 | 350 | 81 | |||
| DNN-P-400 | 400 | 80 | |||
| DNN-P-425 | 425 | 78 | 400% | 0.2 | 10 |
| DNN-P-450 | 450 | 78 | |||
| DNN-P-500 | 500 | 76 | |||
