Product Details:
|
| Material: | Ceramic | Rated Current: | 5A-800A |
|---|---|---|---|
| Rated Voltage: | AC/DC500V | Breaking Capacity: | AC100KA/DC50KA |
| Type Protection: | AR | Application: | Battery,EV Charger |
| Related Standard: | UL248-20、ISO8820、JASO-D622、RoHS | Keyword: | EV Charger Fuse |
| High Light: | Ul248 Battery Protection Fuse,800A Battery Protection Fuse |
||

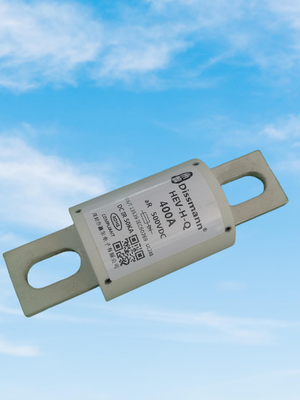

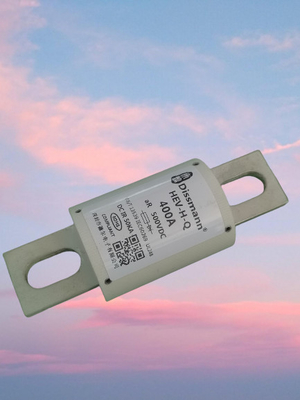

UL248 HEV series fuse for battery protection
Product type of the HEV fuse
| Model | Rated Current | I2t(A2s) | Power dissipation | Size code | Install | |
| HEV-H-Q-35 | 35A | 33 | 145 | 8.5 | HZ1 | Mounting Bolt M8 recommended torque 11N·m |
| HEV-H-Q-40 | 40A | 74 | 315 | 8 | ||
| HEV-H-Q-45 | 45A | 100 | 430 | |||
| HEV-H-Q-50 | 50A | 130 | 650 | 8.5 | ||
| HEV-H-Q-60 | 60A | 200 | 880 | 10 | ||
| HEV-H-Q-70 | 70A | 210 | 900 | 10.5 | HZ2 | |
| HEV-H-Q-80 | 80A | 300 | 1360 | 12.5 | ||
| HEV-H-Q-90 | 90A | 350 | 1500 | 15.5 | ||
| HEV-H-Q-100 | 100A | 460 | 1950 | 17.5 | ||
| HEV-H-Q-125 | 125A | 750 | 3430 | 26 | HZ3 | |
| HEV-H-Q-150 | 150A | 1000 | 4450 | 31 | ||
| HEV-H-Q-175 | 175A | 1400 | 6100 | 36 | ||
| HEV-H-Q-200 | 200A | 1800 | 8300 | 41 | ||
| HEV-H-Q-225 | 225A | 4600 | 23000 | 39 | HZ4 | Mounting Bolt M10 recommended torque 20N·m |
| HEV-H-Q-250 | 250A | 6250 | 32100 | 41 | ||
| HEV-H-Q-275 | 275A | 7800 | 40000 | 46 | ||
| HEV-H-Q-300 | 300A | 9600 | 49000 | 52 | ||
| HEV-H-Q-325 | 325A | 13500 | 63000 | 54 | ||
| HEV-H-Q-350 | 350A | 14000 | 72000 | 59 | ||
| HEV-H-Q-400 | 400A | 18500 | 95500 | 66 | ||
| HEV-H-Q-450 | 450A | 24000 | 125000 | 75 | HZ5 | |
| HEV-H-Q-500 | 500A | 28500 | 147000 | 84 | ||
| HEV-H-Q-600 | 600A | 40500 | 203000 | 108 | ||
| HEV-H-Q-700 | 700A | 54000 | 295000 | 122 | HZ6 | Mounting bolt M12 recommended torque 28N·m |
| HEV-H-Q-800 | 800A | 75000 | 406000 | 130 | ||
| HEV-H-Q-1000 | 1000A | 90000 | 430000 | 146 | HZ7 | |
| HEV-H-Q-1200 | 1200A | 120000 | 590000 | 180 | ||
Basic information of the HEV fuse
This HEV series fuse available in ratings of 5A-800A,rated voltage up to AC/DC500V,breaking capacity is AC100KA,DC50KA at AC/DC500V,type of protection is aR.The dimension and performance conform to UL248,GB13539,IEC60269.

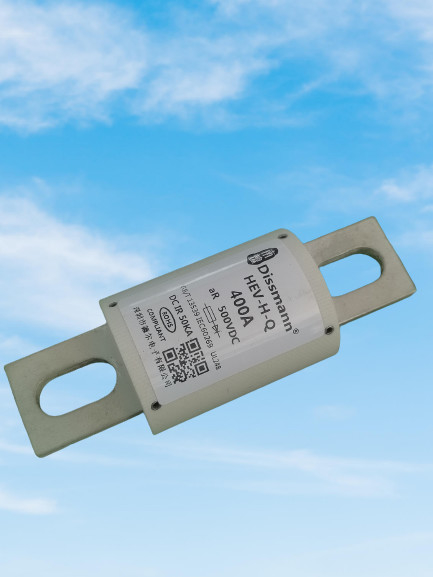

Product characteristic of 400 amp HEV fuse
| Model | Rated Current(A) | 100% voltage drop (mv) | Size Code | Installation |
| HEV-H-Q-400 | 400A | 279 | HZ4 | Install Bolt M10, |
| Recommend Torque: 20N.m |
Dimension of the 400 amp HEV fuse
FAQ
Question:How long is your product life?
Answer:The life of a fuse is 3-5 years under normal power-on condition.
