Product Details:
|
| Material: | Ceramic | Rating Current: | 100A-315A |
|---|---|---|---|
| Rating Voltage: | AC/DC1000V | Breaking Capacity: | DC50KA |
| Type Of Protection: | AR | Related Standard: | UL248-13、ISO8820、JASO-D622、IEC60269、RoHS |
| Application: | Energy Storage System、EV Charger | Installation: | Bolt On |
| High Light: | IEC Standard Battery Protection Fuse,Battery Protection Ceramic Tube Fuses,315A Ceramic Tube Fuses |
||
IEC standard battery protection fuse supply in China
Basic information of the Dissmann®IEC standard fuse
| Material |
Body :Ceramic Caps :Copper alloy Terminal : Copper alloy |
| Characteristic | Use in electric vehicle drive power system, power |
| Interrupting Rating | DC50KA at 1000VDC/AC |
| Ampere Raing | 100A-315A |
| Voltage ( DC) | 1000VDC |
| Voltage(AC) | 1000VAC |
| Permissible Conditions of Use |
-40℃～85℃ |
| Green Mark | RoHS |
| Safety Approvals | TUV |

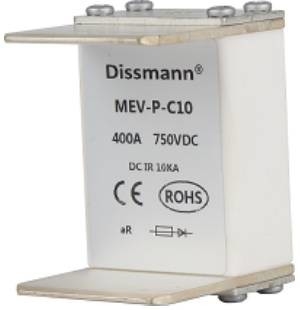

Structure of the MEV fuse
The tube shape of this MEV fuse is square.The porcelain tube is made of ceramics.The bottom touch knife is copper alloy tin plating,and the inside is composed of melting slices,solid glue and quartz sand.
Dimension of the MEV fuse
| Model | Product code | Rated current | I²t(A²Sec) | Power consumption | |
| Pre-arc | Total | ||||
| MEV-J-C10/ | MEV-J-C10/C20-100 | 100 | 695 | 4650 | 24 |
| MEV-J-C20 | MEV-J-C10/C20-125 | 125 | 1200 | 8500 | 28 |
| MEV-J-C10/C20-160 | 160 | 2300 | 16000 | 32 | |
| MEV-J-C10/C20-200 | 200 | 4200 | 28000 | 37 | |
| MEV-J-C10/C20-250 | 250 | 7750 | 51500 | 42 | |
| MEV-J-C10/C20-300 | 300 | 10900 | 73000 | 50 | |
| MEV-J-C10/C20-315 | 315 | 10900 | 73000 | 50 | |
Feedback:
1. After receiving items, Buyer’s early confirmation will be highly appreciated
2. Because your feedback is very important for the development of our business, we sincerely invite you to be satisfied with our products and services. Essence
3. Please contact us before leaving any negative or neutral feedback. We will solve any problems with us. Thank you for your understanding.
Dissmann®Factaory Display
Dissmann® Fuse workshop display
FAQ
Question:How to select the current of the fuse?
Answer:Generally, we will calculate our rated current fuse according to 1.5 times of the customer's actual operating current.
