Product Details:
|
| Contact The Foot: | Copper Alloy | Noumenon: | Electric Wood Shell |
|---|---|---|---|
| Rated Voltage: | 150VDC/250VAC | Rated Current: | 35A~500A |
| Breaking Capacity: | DC3000A | Characteristics: | Small Size, Low Power Consumption And High Breaking Capacity |
| High Light: | Dissmann Blade Type Fuse,500A Blade Type Fuse,DC150V Energy Storage System Fuse |
||

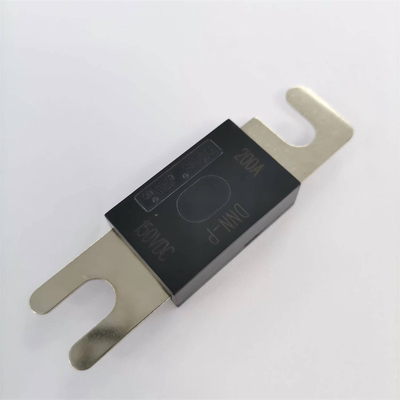

DNN-P series blade type fuse
|
Component name |
Material |
|
Contact the foot |
Copper alloy |
|
Noumenon |
Electric wood shell |
| Load | Opening time | |
| 10A～500A | ||
| min | max | |
| 110% | 14400 | ∞ |
| 160% | 10 | ∞ |
| 200%(≤200A) | 0 | 100 |
| 200%(＞200A) | 0 | 300 |
| 250%(≤200A) | 0 | 60 |
| 250%(＞200A) | 0.8 | 120 |
| 600% | 0.02 | 10 |
|
Model |
Product code |
Rated current A |
Voltage drop mV |
Installation requirement |
| DNN-H | DNN-P-35 | 35 | 130 |
Install bolt M8, recommended torque 10N·m ±1 N·m |
| DNN-P-40 | 40 | 125 | ||
| DNN-P-50 | 50 | 120 | ||
| DNN-P-60 | 60 | 116 | ||
| DNN-P-80 | 80 | 112 | ||
| DNN-P-100 | 100 | 110 | ||
| DNN-P-125 | 125 | 105 | ||
| DNN-P-130 | 130 | 100 | ||
| DNN-P-150 | 150 | 96 | ||
| DNN-P-175 | 175 | 90 | ||
| DNN-P-200 | 200 | 86 | ||
| DNN-P-225 | 225 | 83 | ||
| DNN-P-250 | 250 | 80 | ||
| DNN-P-275 | 275 | 77 | ||
| DNN-P-300 | 300 | 75 | ||
| DNN-P-325 | 325 | 83 | ||
| DNN-P-350 | 350 | 81 | ||
| DNN-P-400 | 400 | 80 | ||
| DNN-P-425 | 425 | 78 | ||
| DNN-P-450 | 450 | 78 | ||
| DNN-P-500 | 500 | 76 |
a.DNN-A/X/H/P series fuse,L size,the rated voltage include:DC32V/58V/80V/150V AC125V/250V
b.DNN-C/D/E series fuse,M size,the rated voltage include:DC32V/58V/80V
c.DNQ-A/X/H series fuse,S size,the rated voltage include:DC32V/58V/80V
