Product Details:
|
| Material: | Ceramic Body With Metal Bolted Connection | Color: | White |
|---|---|---|---|
| Rated Voltage: | AC690V/DC750V | Rated Current: | 16A-400A |
| Type Protection: | AR | Breaking Capacity: | DC50KA |
| Application: | Suitable For Application In Road Vehicle Industry, And Can Be Used As Short Circuit, Overload And Backup Protection Of Electric Vehicle Driving Power System | ||
| High Light: | Automotive Ceramic Car Fuse,AC690V Ceramic Car Fuse,400A Energy Storage System Fuse |
||

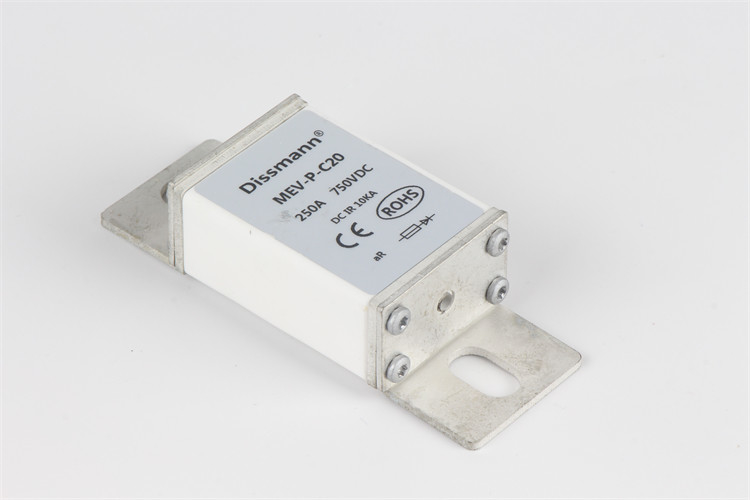

MEV-P-C20-250 Fuses rated voltage AC690V DC750V,rated current 250A, the structure and performance shall comply with GB13539, IEC60269 and UL248.
MEV-P-C20 series Fuses rated voltage AC690V DC750V,rated current 16A-400A,these Electric Vehicle fuses are square tubular bolt mounted fuses with small volume and high breaking capacity. It is applicable to a wide temperature range, can withstand high strength mechanical vibration and impact, wide temperature impact and strong chemical load, and is suitable for road vehicle industry applications. It can be used as short circuit, overload and backup protection of electric vehicle driving power system, power conversion system, energy storage system, frequency conversion controller, charger, MSD and other vehicle devices and equipment.
| Model | Product code | Rated current(A) | I²t(A²Sec) | Power consumption(W) | |
| 弧前 | 总 | ||||
| MEV-P-C20 | MEV-P-C20-16 | 16 | 7.2 | 48 | 5.5 |
| MEV-P-C20-20 | 20 | 11.5 | 78 | 7 | |
| MEV-P-C20-25 | 25 | 19 | 130 | 9 | |
| MEV-P-C20-32 | 32 | 40 | 270 | 10 | |
| MEV-P-C20-40 | 40 | 69 | 460 | 12 | |
| MEV-P-C20-50 | 50 | 115 | 770 | 15 | |
| MEV-P-C20-63 | 63 | 215 | 1450 | 16 | |
| MEV-P-C20-80 | 80 | 380 | 2550 | 19 | |
| MEV-P-C20-100 | 100 | 695 | 4650 | 24 | |
| MEV-P-C20-125 | 125 | 1200 | 8500 | 28 | |
| MEV-P-C20-160 | 160 | 2300 | 16000 | 32 | |
| MEV-P-C20-200 | 200 | 4200 | 28000 | 37 | |
| MEV-P-C20-250 | 250 | 7750 | 51500 | 42 | |
| MEV-P-C20-315 | 315 | 12000 | 80500 | 52 | |
| MEV-P-C20-350 | 350 | 14500 | 98500 | 58 | |
| MEV-P-C20-400 | 400 | 19500 | 133000 | 67 | |
You can choose the right square ceramic MEV Fuse for your project based on the rated current, send us the product code to get a quick quotation. If your project requires customized MEV fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within 48 hours.
