Product Details:
|
| Material: | Ceramic Body With Metal Bolted Connection | Color: | White |
|---|---|---|---|
| Rated Voltage: | AC/DC500V | Rated Current: | 800A-1800A |
| Type Protection: | AR | Breaking Capacity: | DC10KA |
| Application: | MEV Fuse For Energy Storage System | Indicator: | Yes |
| High Light: | MEV Energy Storage System Fuse,DC500V Energy Storage System Fuse,ESS Fuse With Indicator |
||

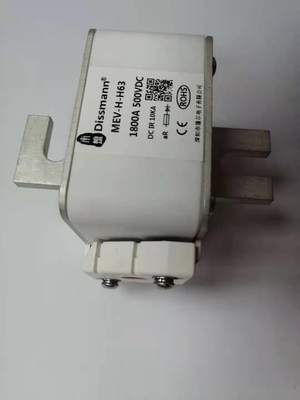

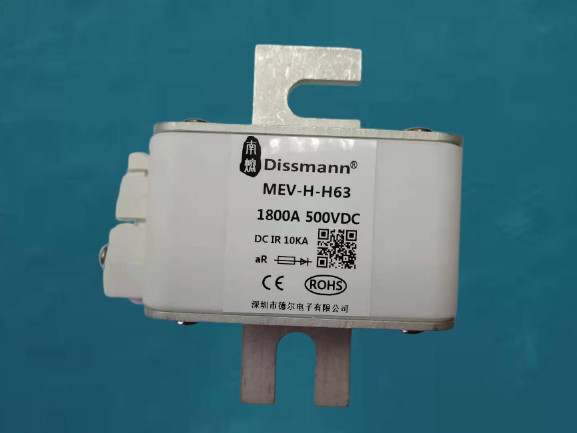

MEV-H-H63 series Fuses rated voltage AC/DC500V, the structure and performance shall comply with GB13539, IEC60269 and UL248.
MEV-H-H63 series Fuses help the battery energy storage systems packing in more power with the right protection. They are fast-acting fuse with a higher short-circuit current rating the rated current is 800A-1800A.
1.Shape and mounting dimensions of the MEV fuse:
2.MEV-H-H63 fuse model classification according to rated current :
|
Model |
Product code |
Rated current A |
I²t(A²Sec) |
Power consumption W |
|
| 弧前 | 总 | ||||
| MEV-H-H63 | MEV-H-H63-800 | 800A | 69200 | 465000 | 115 |
| MEV-H-H63-900 | 900A | 100000 | 670000 | 120 | |
| MEV-H-H63-1000 | 1000A | 140000 | 945000 | 125 | |
| MEV-H-H63-1100 | 1100A | 190000 | 1300000 | 130 | |
| MEV-H-H63-1250 | 1250A | 280000 | 1900000 | 140 | |
| MEV-H-H63-1400 | 1400A | 370000 | 2450000 | 155 | |
| MEV-H-H63-1500 | 1500A | 460000 | 3100000 | 160 | |
| MEV-H-H63-1600 | 1600A | 580000 | 3900000 | 160 | |
| MEV-H-H63-1800 | 1800A | 880000 | 5200000 | 165 | |
You can choose the right square ceramic MEV Fuse for your project based on the rated current, send us the product code to get a quick quotation. If your project requires customized MEV fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within 48 hours.
