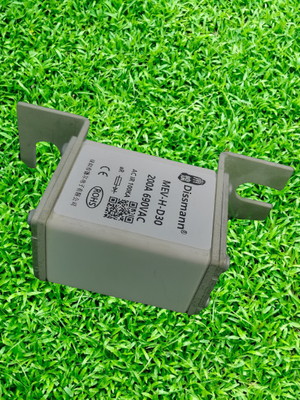

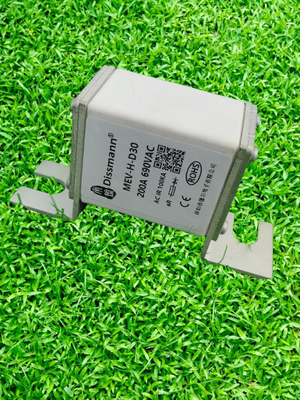

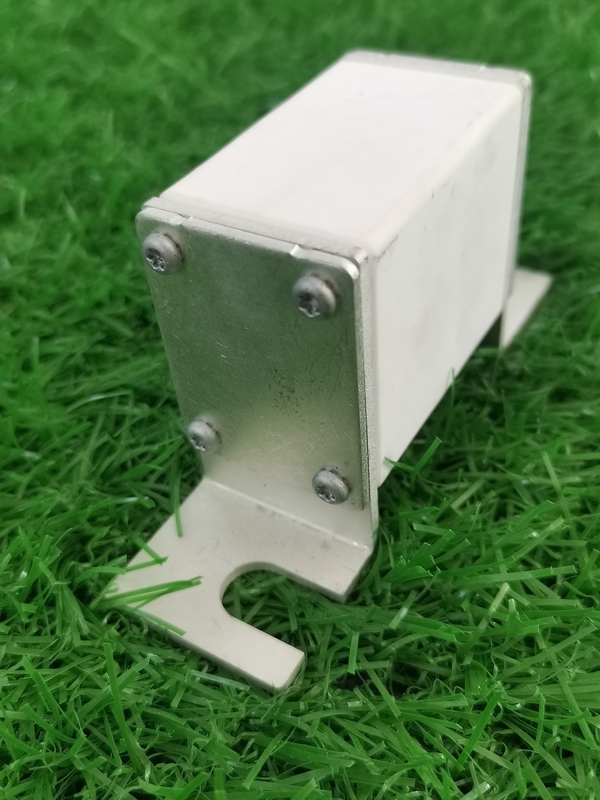

1000VDC High Speed Fuses , Semiconductor Energy Storage System Fuses

3.Product Application:

This series of products are square tube bolt fuse, low I²t, Strong current limiting capacity, high breaking capacity and other characteristics, suitable for rail transit, electric vehicles, ships and other industrial applications. It can be used as short circuit overcurrent and backup protection for energy storage system, power system, wire and other devices and equipment.

Note: All test data in this specification are measured in standard environment, test parameters and wiring according to IEC60269.

4.Product Dimension:

5.Installation conditions

Normal working conditions

The fuses are installed separately in unventilated natural air, in addition to connecting wires, no other heat generating parts or heat dissipating parts within 1m.

The fuse connection terminals should ensure stable and reliable electrical contact; contact resistance should not significantly affect fuse operation.

The fuse can be installed vertically, horizontally or obliquely. If relying on spring pressure to ensure electrical connection fuse, when installing, a suitable location should be selected to avoid the adverse effects of gravity and vibration on the electrical connection.
