Product Details:
|
| Material: | Ceramic | Rated Current: | 35A |
|---|---|---|---|
| Rated Voltage: | 400VAC | Breaking Capacity: | DC10KA |
| Colour: | White | Installation: | Bolt |
| Application: | Electric Vehicle Drive Power System, Energy Storage And Power Battery | Keyword: | Energy Storage System Fuse |
| High Light: | 35a hrc cartridge fuse,energy storage system hrc cartridge fuse |
||

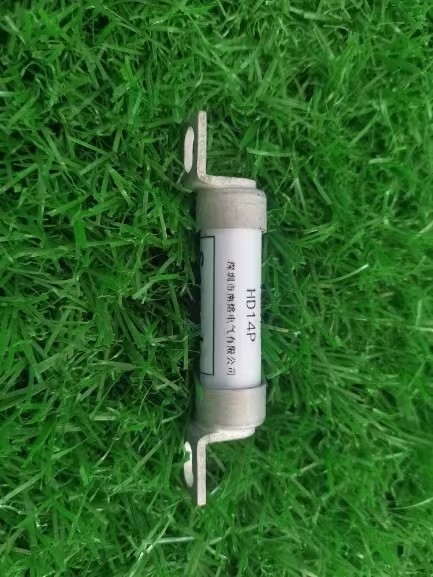

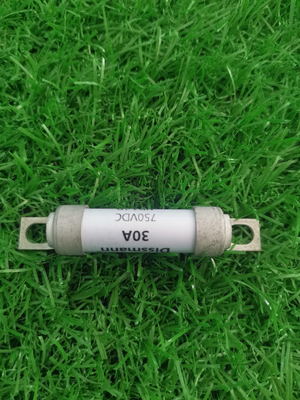

Dissmann Fuse Brand Ceramic Bolt Type Fuse For Energy Storage System
1.Product Basic Information:
| Rated Voltage | 400VAC | Characteristic | F |
| Rated Current | 35A | Breaking Capacity | DC10KA |
| Meet the Requirement | UL248,ISO8820,EU and ROHS Detective | Remark | UL |
2.Product Material:
| Component | Material | Quantity |
| Wire | Silver copper tin alloy | 1 |
| Cap | Tin plated copper alloy | 4 |
| Body | Ceramic tube | 1 |
| Filler | Fuse sand | Amount |
3.Product Type:
| Model | Rated current | Rated voltage | Breaking capacity |
| HD14S.J05 | 10A～150A | 400Vac | 6KA |
| HD14H.J05 | 10A～150A | 500Vac |
4. Packing Details
4.1 Packing Quantity
A:10pcs per inner astic pallet,2pcs astic pallet per inner small box.
B:20 inner small box.
Remarks: The packaging will be adjusted according to the actual situation.
4.2 Packing shall be so carried out that the products will not absorb moisture or be damaged during transportation or storage.
5.Storage Conditions
Product storage temperature:-40℃～55℃.
The relative humidity is not more than 70% at 40 ℃, 80% at 30 ℃ and 90% below 20 ℃.
Transportation temperature:-40℃ ~ 70 ℃. The relative humidity is not more than 90%, and there is no condensation.
6.Product Dimension:
Product equipment:
Test equipment:
Certificate:
