Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Rated Voltage: | 150VDC/240VAC | Rated Current: | 400A |
| Breaking Capacity: | DC20KA/AC50KA | Standard: | UL248-20、ISO8820、 JASO-D622、ROHS |
| Usage: | Automotive,energy Storage System,Solar | Keyword: | Energy Storage System Fuse |
| High Light: | Dissmann 400 amp dc fuse,400 amp dc fuse,JASO-D622 electric vehicle fuses |
||

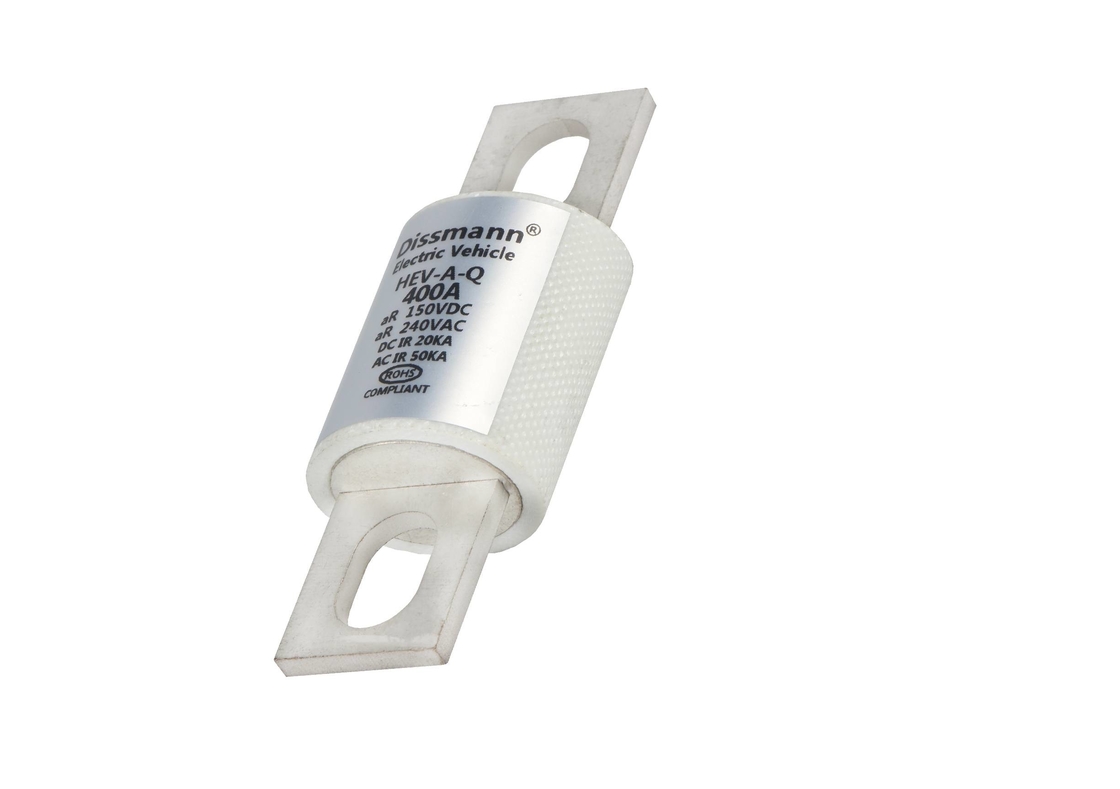

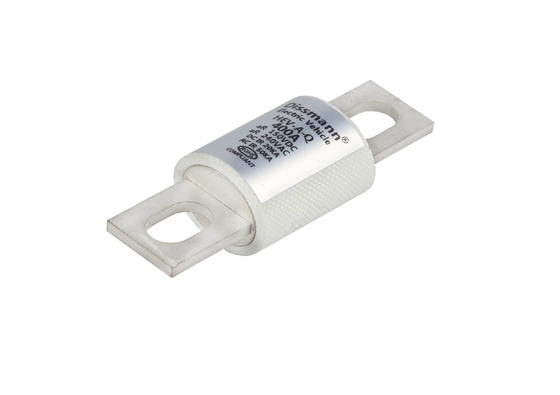

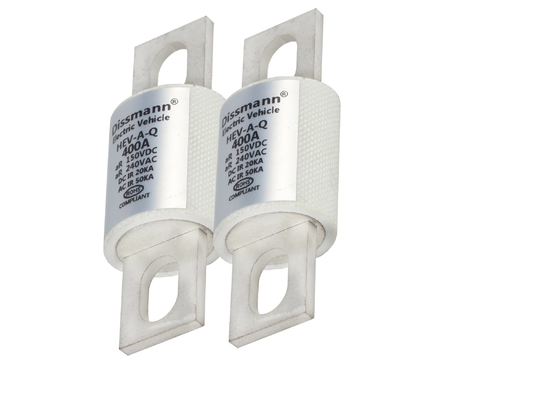

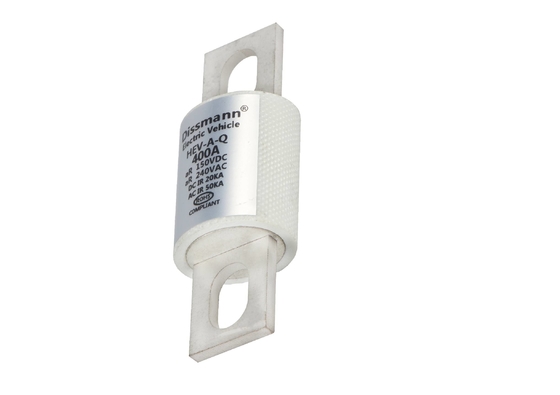

Energy Storage System Fuses Low Current Fuse EV Fuse AC 50KA Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Product Presentation:
|
Rated Voltage |
AC250V/DC150V |
Type Protection |
aR |
| Rated Current | 5A-800A |
Breaking Capacity |
DC20KA (time constant≤15ms) |
|
Meet the Requirement |
UL248-20,ISO8820,JASO-D622, Europe and RoHs Directive |
Remarks |
— |
Shape and mounting dimensions of fuses
| Dimension code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HW1 | 68.2 | 25 | 29 | 44 | 53 | 9 | 18 | 3.3 | 13.5 |
| HW2 | 94 | 38 | 38 | 54 | 74.5 | 10.5 | 25 | 6 | 20.7 |
150V(70-1000)A
Product type
| Model |
Rated Current (A) |
I2t(A2s) |
Power dissipation (W) |
Size code | Install | |
| Pre-Arc | After-Arc | |||||
| HEV-A-Q-70 | 70A | 460 | 3920 | 6.8 | HW1 | Mounting Bolt M8 recommended torque 11N·m |
| HEV-A-Q-80 | 80A | 665 | 5850 | 7.5 | ||
| HEV-A-Q-100 | 100A | 1120 | 11100 | 8.8 | ||
| HEV-A-Q-125 | 125A | 1840 | 17600 | 11.0 | ||
| HEV-A-Q-150 | 150A | 2650 | 25400 | 12.8 | ||
| HEV-A-Q-200 | 200A | 4750 | 44000 | 17.5 | ||
| HEV-A-Q-250 | 250A | 7420 | 68500 | 22.5 | ||
| HEV-A-Q-300 | 300A | 11000 | 99000 | 26.5 | ||
| HEV-A-Q-350 | 350A | 14800 | 139000 | 30.4 | ||
| HEV-A-Q-400 | 400A | 18800 | 180000 | 34.8 | ||
| HEV-A-Q-500 | 500A | 36000 | 110000 | 34.5 | HW2 | Mounting Bolt M10 recommended torque 20N·m |
| HEV-A-Q-600 | 600A | 43500 | 125000 | 45.6 | ||
| HEV-A-Q-700 | 700A | 68000 | 198000 | 48.5 | ||
| HEV-A-Q-800 | 800A | 86000 | 255000 | 57.0 | ||
| HEV-A-Q-1000 | 1000A | 152000 | 470000 | 59.5 | ||
