Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Rated Voltage: | 200VDC | Rated Current: | 10A |
| Breaking Capacity: | 1.5KA | Standard: | IEC60269﹑GB/T31465﹑ UL248﹑ROHS |
| Usage: | Automotive,energy Storage System,Solar | Keyword: | Energy Storage System Fuse |
| High Light: | 200VDC Low Breaking Capacity Fuse,25 Low Breaking Capacity Fuse,GB/T31465 10 amp car fuse |
||

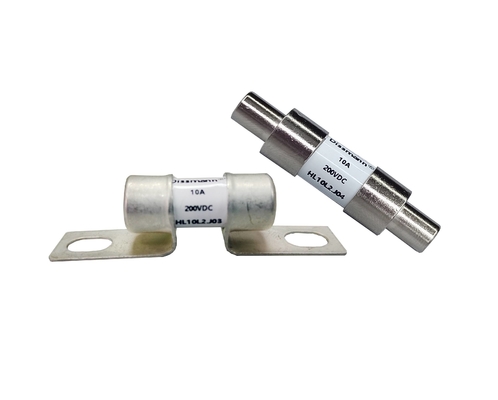

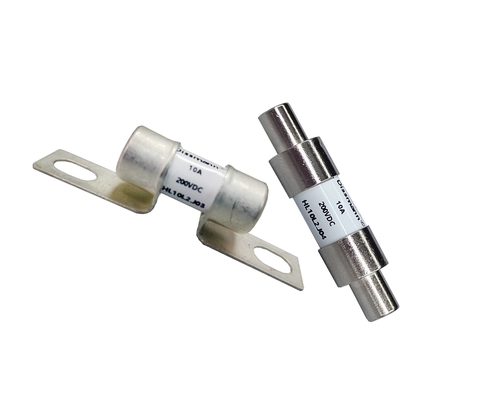

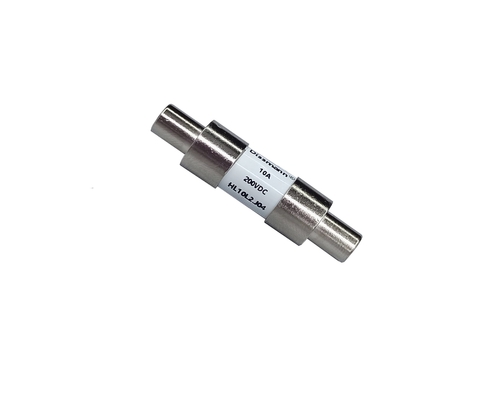

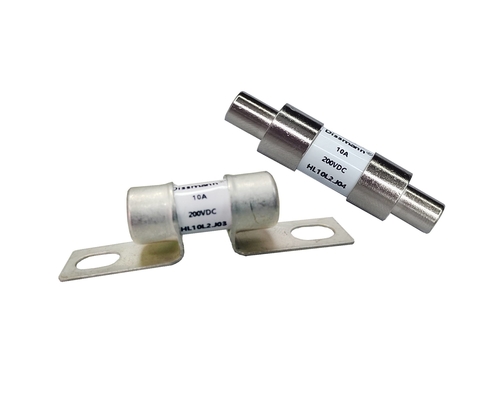

Low Breaking Capacity Fuse Energy Storage System Fuse 10 X 25 Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Features:
|
Rated Voltage 额定电压 |
80VDC/100VDC/200VDC |
Characteristic 特性 |
aR |
| Rated Current 额定电流 | 10A-80A |
Breaking Capacity 分断能力 |
1.5KA |
|
Meet the Requirement 符合要求 |
IEC60269﹑GB/T31465﹑UL248﹑欧盟和RoHS 指令 |
Remarks 备注 |
UL,TUV |
产品外形尺寸(mm)/Overall dimensions of the product(mm):
产品型号/Product type
| Model型号 |
Rated current 额定电流A |
Rated voltage 额定电压V |
Breaking capacity 分断能力 |
| HL10L.J01/HL10L.J02/HL10L.J04 | 10A～80A | 80VDC | 1.5KA |
| HL10L1.J01/HL10L1.J02/HL10L1.J04 | 10A～80A | 100Vdc | 1.5KA |
| HL10L2.J01/HL10L2.J02/HL10L2.J04 | 10A～80A | 200Vdc | 1.5KA |
