Product Details:
|
| Material:: | Ceramic | Colour:: | White |
|---|---|---|---|
| Rated Voltage:: | 500VDC | Rated Current:: | 2000A |
| Breaking Capacity:: | DC10KA | Standard:: | UL248-13、ISO8820、 JASO-D622、IEC60269、ROHs |
| Usage:: | High Voltage Automotive,PV Inverter,solar Battery | Keyword：: | Solar Battery Fuse |
| High Light: | 500VDC solar pv fuse,2000A solar pv fuse,CCC high current automotive fuses |
||

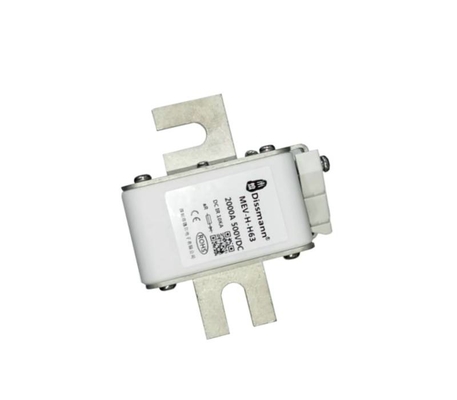

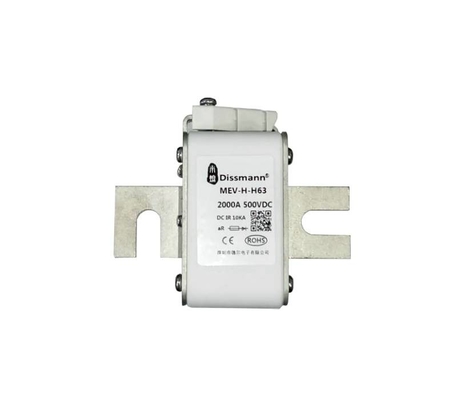

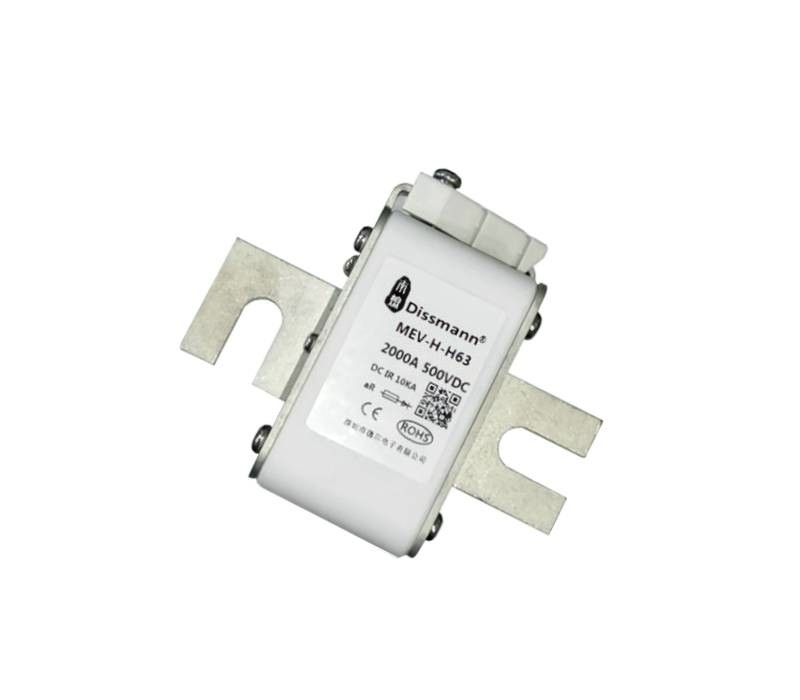

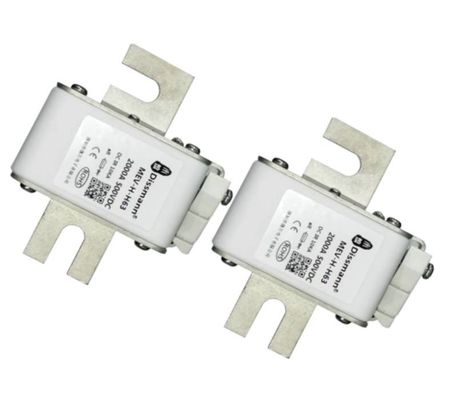

European Square Fuse High Current Fuse PV Fuse Semiconductor Protection Fuse
Material:
Noumenon: Ceramic
Pins: Alloy
Product Presentation:
|
Rated Voltage 额定电压 |
DC500V,AC690V 或低于 |
Type Protection 保护类别 |
aR |
| Rated Current 额定电流 | 800A-1800A |
Breaking Capacity 分断能力 |
DC10KA (时间常数≤10ms) |
|
Meet the Requirement 符合要求 |
UL248-13,ISO8820,JASO-D622,IEC60269 欧盟和RoHS 指令 |
Remarks 备注 |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
产品型号/Product type
|
Model 型号 |
Product code 产品代码 |
Rated current 额定电流 A |
I²t(A²Sec) |
Power consumption 功率损耗 W |
|
| 弧前 | 总 | ||||
| MEV-H-H63 | MEV-H-H63-800 | 800A | 69200 | 465000 | 115 |
| MEV-H-H63-900 | 900A | 100000 | 670000 | 120 | |
| MEV-H-H63-1000 | 1000A | 140000 | 945000 | 125 | |
| MEV-H-H63-1100 | 1100A | 190000 | 1300000 | 130 | |
| MEV-H-H63-1250 | 1250A | 280000 | 1900000 | 140 | |
| MEV-H-H63-1400 | 1400A | 370000 | 2450000 | 155 | |
| MEV-H-H63-1500 | 1500A | 460000 | 3100000 | 160 | |
| MEV-H-H63-1600 | 1600A | 580000 | 3900000 | 160 | |
| MEV-H-H63-1800 | 1800A | 880000 | 5200000 | 165 | |
