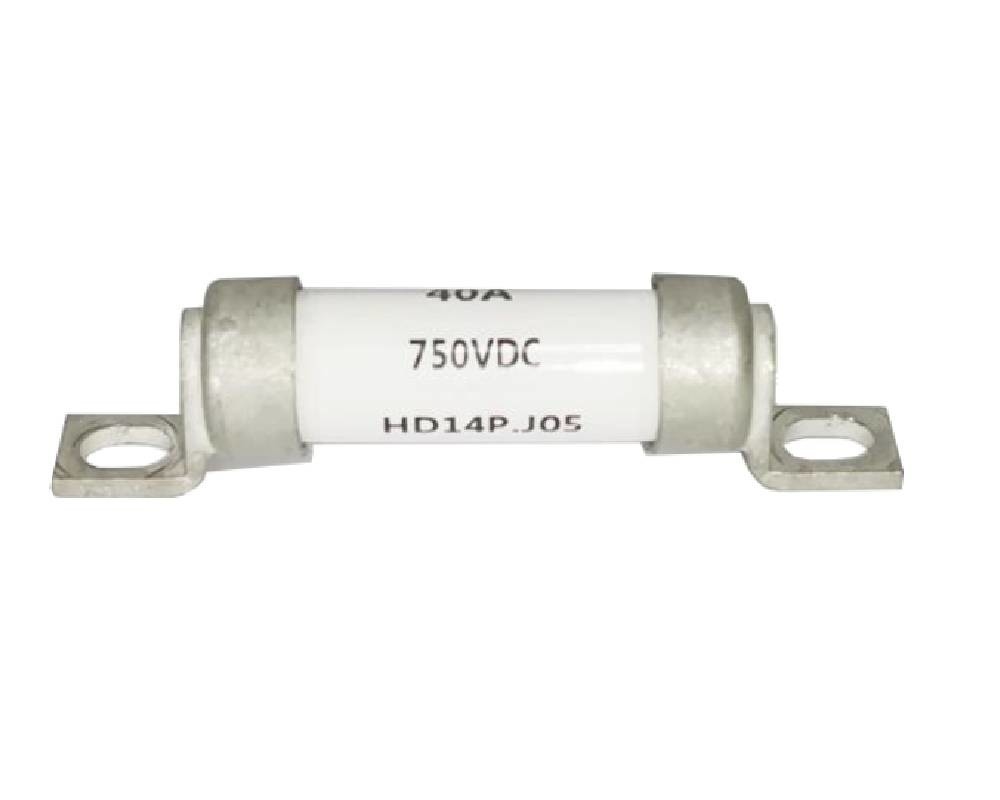

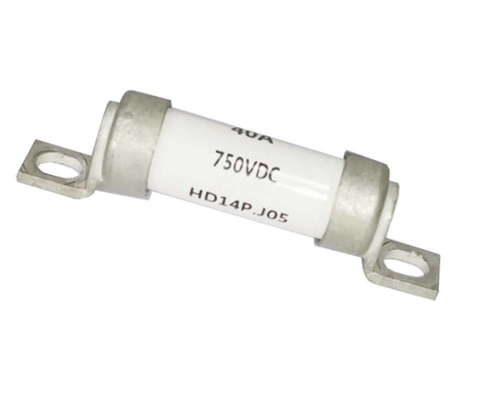

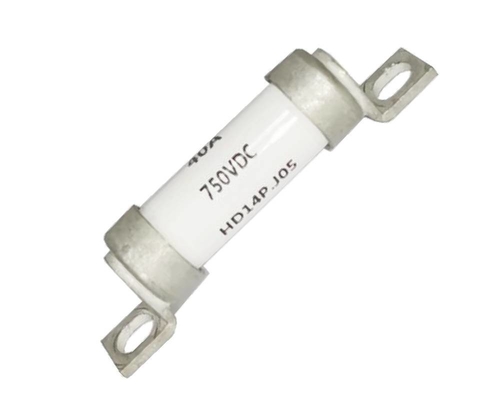

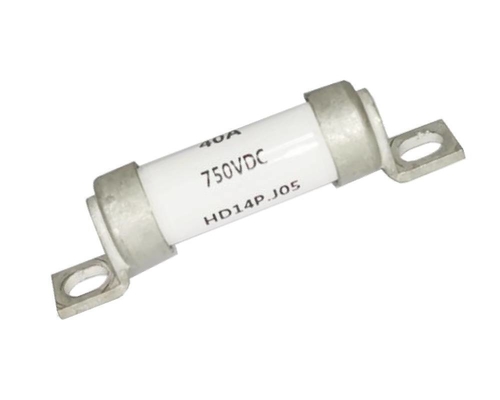

Product Details:
|
| Material:: | Fiber Pipe | Colour:: | White |
|---|---|---|---|
| Rated Voltage:: | 750VDC | Rated Current:: | 40A |
| Breaking Capacity:: | 30KA | Usage:: | Energy Storage System,PV Inverter,train Base |
| Standard:: | UL248-13,ROHs | Keyword:: | Energy Storage Fuse |
| High Light: | Fiber Pipe Energy Storage System Fuse,750VDC Energy Storage System Fuse,14 x 51 fuse |
||
14*51 fuse energy storage fuse power supply fuse high breaking capacity fuse
Material:
Noumenon: fiber pipe
Pins: Alloy
Product Presentation:
|
Rated Voltage 额定电压 |
400VAC/500VAC |
Characteristic 特性 |
aR |
| Rated Current 额定电流 | 10A-150A |
Breaking Capacity 分断能力 |
6KA |
|
Meet the Requirement 符合要求 |
UL248-13, 欧盟和RoHS 指令 |
Remarks 备注 |
UL |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
产品型号/Product type
| Model型号 |
Rated current 额定电流A |
Rated voltage 额定电压V |
Breaking capacity 分断能力 |
| HD14S.J05 | 10A～150A | 400Vac | 6KA |
| HD14H.J05 | 10A～150A | 500Vac |
