Product Details:
|
| Material:: | Fiber Pipe | Colour:: | White |
|---|---|---|---|
| Rated Voltage:: | 1000VDC | Rated Current:: | 1A-100A |
| Usage:: | High Voltage Automotive,PV,Power Bank | Keyword:: | Energy Storage Fuse |
| High Light: | 100 Amp fuse 10 x 38,1000VDC fuse 10 x 38,1000VDC Power bank fuse |
||

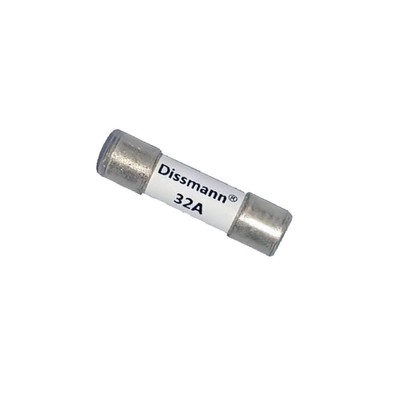

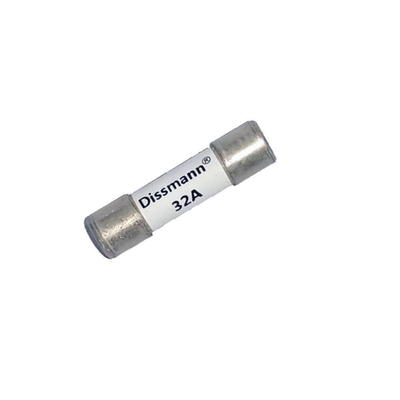

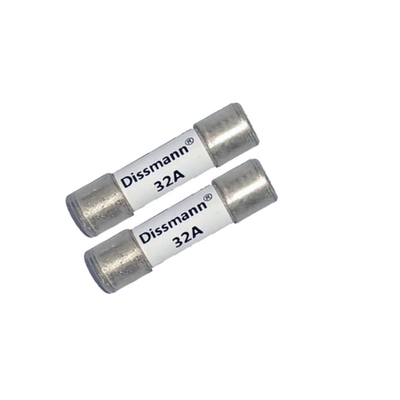

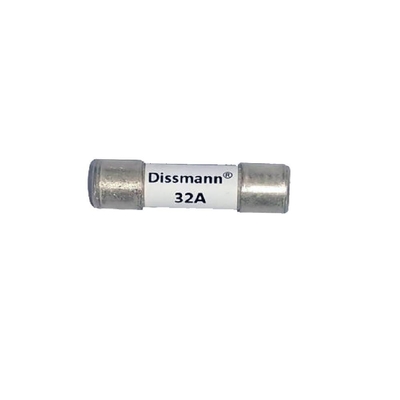

Power bank fuse high volt fuse 10*38 fuse PV fuse Charging pile fuse
Material:
Noumenon: fiber pipe
Pins: Alloy
Product Presentation:
|
Rated Voltage 额定电压 |
80VDC-1000VDC |
Characteristic 特性 |
aR |
| Rated Current 额定电流 | 20A-100A |
Breaking Capacity 分断能力 |
|
|
Meet the Requirement 符合要求 |
UL248,IEC60127, 欧盟和RoHS 指令 |
Remarks 备注 |
UL,TUV |
工程图及材料表 / Drawing and material sheet
| Assembly组件 | Material quality 材质 |
| Fusant熔体 | Alloy合金 |
| End cap端帽 |
Copper alloy tin plating 铜合金镀锡 |
| Noumenon本体 | Fibre pipe 纤维管 |
| Infilling填充物 | Quartz sand 石英砂 |
产品型号/Product type
| Model型号 |
Rated current 额定电流A |
Rated voltage 额定电压V |
Breaking capacity 分断能力 |
| HDQ10PV | 25A～30A | 1000Vdc | 10KA |
| HDQ10P | 25A～30A | 750Vac/dc | |
| HDQ10D | 25A～40A | 500Vdc | |
| HDQ10MN | 25A～40A | 690Vac/dc | |
| HDQ10N | 25A～40A | 690Vac | |
| HDQ10M | 25A～40A | 690Vdc | |
| HDQ10X | 30A～100A | 500Vac | 1.5KA |
| HDQ10C | 30A～100A | 400Vdc | |
| HLQ10L1 | 30A～100A | 200Vdc | |
| HLQ10L2 | 30A～100A | 100Vdc | |
| HLQ10L | 30A～100A | 80Vdc |
