Product Details:
|
| Material:: | Fiber Pipe | Colour:: | White |
|---|---|---|---|
| Rated Voltage:: | 1000VDC | Rated Current:: | 1A-100A |
| Usage:: | Energy Storage System,Solar Panel,PV | Keyword:: | Energy Storage Fuse |
| Highlight: | 100A ESS Fuse,Fiber Pipe ESS Fuse,10 x 38 cartridge fuses |
||

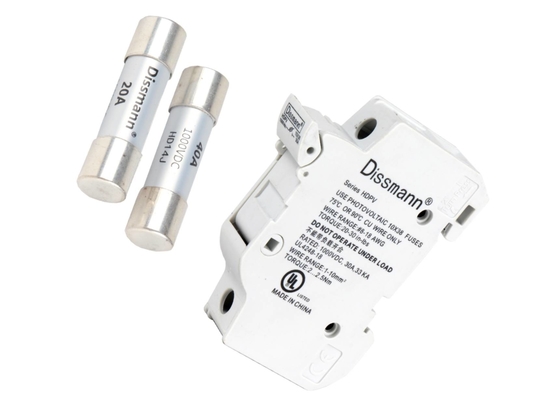

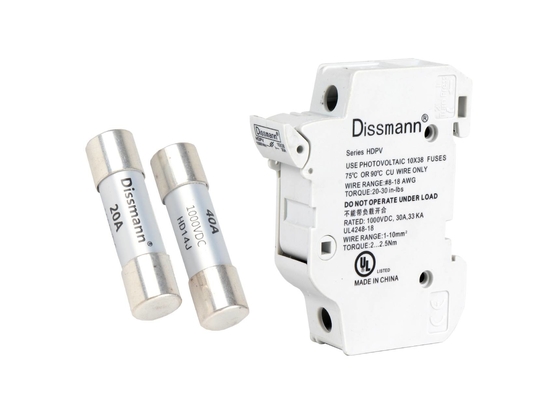

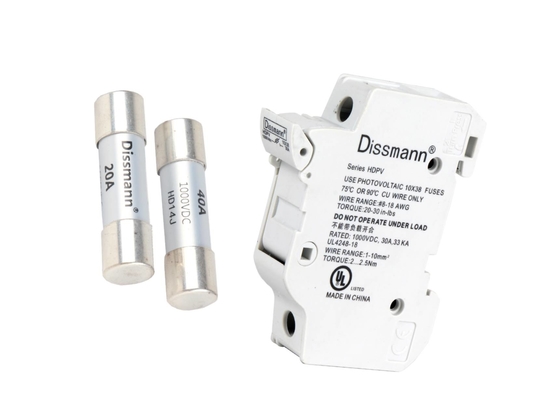

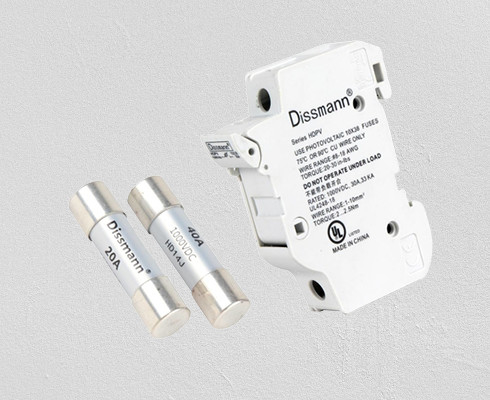

Energy Storage System Fuse 10*38 Fuse With Base PV Fuse Solar Fuse
Material:
Noumenon: fiber pipe
End cap: Copper alloy tin plating
Product Presentation:
|
Rated Voltage 额定电压 |
80VDC-1000VDC |
Characteristic 特性 |
aR |
| Rated Current 额定电流 | 1A-100A |
Breaking Capacity 分断能力 |
|
|
Meet the Requirement 符合要求 |
UL248,IEC60127, 欧盟和RoHS 指令 |
Remarks 备注 |
UL,TUV |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
保险管座图/Safety pipe seat drawing
单体产品型号/Single product model
| Model型号 |
Rated current 额定电流A |
Rated voltage 额定电压V |
Breaking capacity 分断能力 |
| HD10PV | 1A～40A | 1000Vac | 1.5KA |
| 1A～20A | 1000Vdc | 33KA | |
| 1A～40A | 1000Vdc | 1.5KA | |
| HD10P | 1A～20A | 750Vac/dc | 33KA |
| HD10P | 1A～40A | 750Vdc | 1.5KA |
| HD10V | 1A～50A | 700Vdc | 6KA |
| HD10DX | 1A～20A | 500Vac/dc | 33KA |
| HD10X | 1A～20A | 500Vac | 33KA |
| 30A～100A | 500Vac | 1.5KA | |
| HD10D | 1A～20A | 500Vdc | 33KA |
| HD10D | 1A～50A | 500Vdc | 6KA |
| HD10MN | 1A～20A | 690Vac/dc | 33KA |
| HD10N | 1A～20A | 690Vac | |
| HD10M | 1A～20A | 690Vdc | |
| HD10G | 1A～20A | 600Vdc | 6KA |
| HD10H | 1A～20A | 600Vac | |
| HD10C | 30A～100A | 400Vdc | 1.5KA |
| HD10F | 1A～20A | 400Vac | 6KA |
| HD10A | 1A～20A | 250Vac | |
| HD10L | 60A | 80VDC |
保险管座特性表/Characteristics of fuse socket
| 产品型号/Product model | HDPV |
| 尺寸/Size | 10x38 |
| 额定电流/Rated current | 30A |
| 额定电压/Rated voltage | 1000VDC |
| 分断电流/Breaking current | 33KA |
| 接线端子紧固力矩/Terminal fastening moment |
1.7N·m (14.75IN·LBS) |
| 铜连接导体截面积/Copper junction conductor cross-sectional area |
2～10mm2 (14～6AWG) |
| 组件/Assembly | Material quality 材质 |
| 壳体/Monoblock | PBT plastics PBT塑料 |
| 端子/Terminal |
Copper alloy plating high temperature tin 铜合金镀高温锡 |
