Product Details:
|
| Material: | Ceramic | Usage: | High Voltage, Automotive |
|---|---|---|---|
| Rated Voltage: | 500VDC | Color: | White |
| Standard: | IEC60269 | Type: | Class L Fuse |
| Rated Current: | 400A | ||
| High Light: | Class L BS1362 Cartridge Fuses,IEC60269 BS1362 Cartridge Fuses,Fast Acting class l fuse |
||

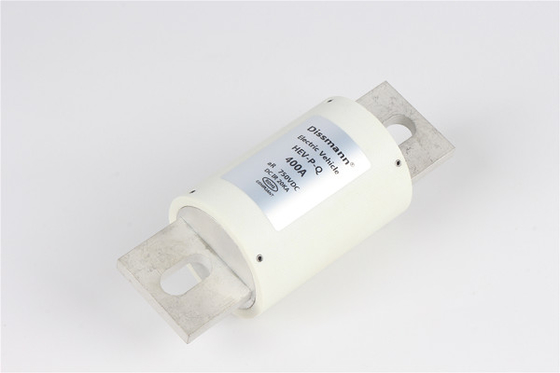

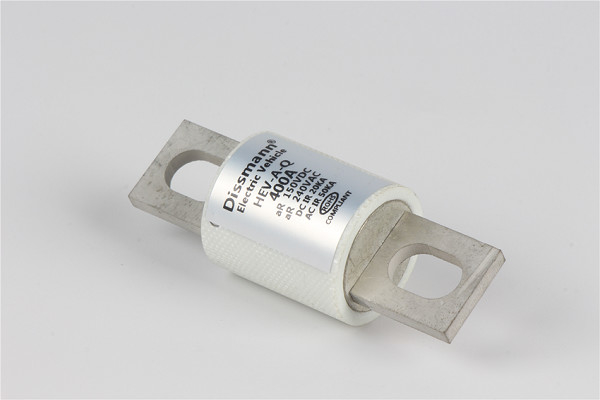

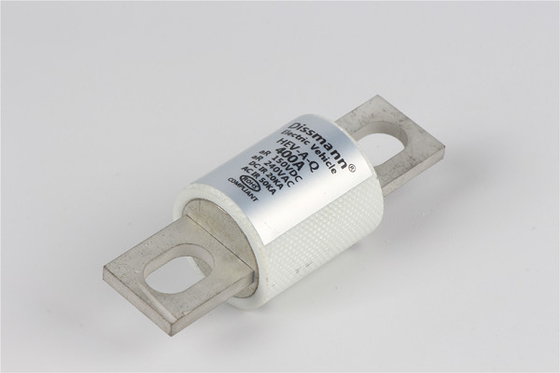

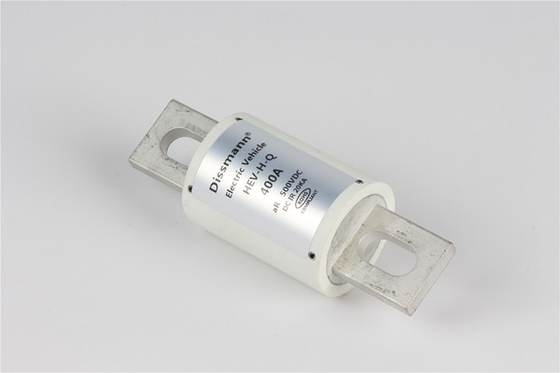

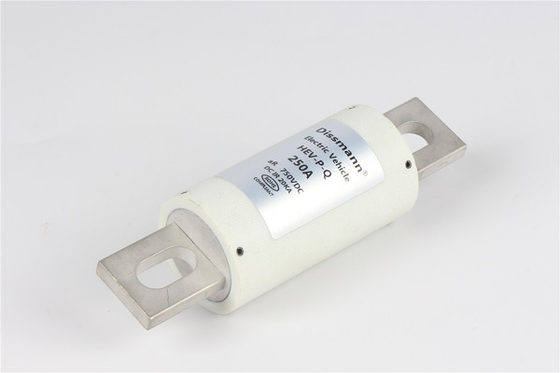

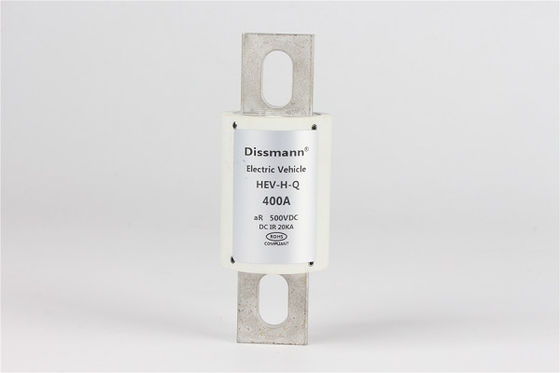

Class L BS1362 Cartridge Fuses IEC60269 Standard Fast Acting
Material:
Noumenon: Fiber Tube
Pins: Copper alloy
Features:
Low Voltage Automotive Fuse
Many kinds of Low Voltage Automotive Fuse
Current rating: 400A
Voltage rating: 500VDC
Breaking capacity:AC100KA,DC50KA
Product Presentation:
|
Rated Voltage
|
500VDC |
Patent Protection
|
GB2410626 |
| Rated Current |
5A-800A |
Breaking Capacity
|
AC100KA,DC50KA |
|
Meet the Requirement
|
UL248-20,ISO8820,JASO-D622, EU and RoHS Directive |
Remarks
|
gR data provided in separate edition |
Overall dimensions of the product(mm)
| 尺寸代码 | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HT1 | 73.5 | 14.3 | 48 | 60.5 | 63.5 | 6.5 | 10.3 | 1.6 | 8 |
| HT2 | 110 | 22 | 69 | 84 | 95.5 | 9 | 15 | 3.3 | 14.75 |
| HT3 | 129 | 36.5 | 72 | 88 | 109 | 10.5 | 25 | 6 | 20.7 |
| HT4 | 129 | 50 | 72 | 88.6 | 109 | 10.5 | 38 | 6 | 20.7 |
| HT5 | 180 | 63 | 72 | 106 | 145 | 13.5 | 50 | 10 | 33 |
Current characteristic curve
Product type
| Model | Rated Current | I²t(A²s) | Power dissipation | Size code | Install | |
| Pre-arc | Total | |||||
| HEV-P-Q-5 | 5A | 1.6 | 10 | 1.5 | HT1 | Mounting Bolt M6 recommended torque 4N·m |
| HEV-P-Q-10 | 10A | 3.5 | 19 | 3.8 | ||
| HEV-P-Q-15 | 15A | 9.5 | 73 | 5.4 | ||
| HEV-P-Q-20 | 20A | 25.5 | 176 | 6 | ||
| HEV-P-Q-25 | 25A | 42 | 330 | 7 | ||
| HEV-P-Q-30 | 30A | 55 | 420 | 9 | ||
| HEV-P-Q-35 | 35A | 33 | 160 | 11 | HT2 | Mounting Bolt M8 recommended torque 11N·m |
| HEV-P-Q-40 | 40A | 75 | 315 | 12 | ||
| HEV-P-Q-45 | 45A | 95 | 430 | 12 | ||
| HEV-P-Q-50 | 50A | 135 | 590 | 12.5 | ||
| HEV-P-Q-60 | 60A | 205 | 940 | 14.8 | ||
| HEV-P-Q-70 | 70A | 300 | 1980 | 17.5 | ||
| HEV-P-Q-80 | 80A | 350 | 2350 | 20.5 | ||
| HEV-P-Q-90 | 90A | 410 | 2630 | 24 | ||
| HEV-P-Q-100 | 100A | 530 | 3450 | 26.5 | ||
| HEV-P-Q-125 | 125A | 1700 | 7200 | 27 | HT3 | Mounting Bolt M10 recommended torque 20N·m |
| HEV-P-Q-150 | 150A | 2750 | 11000 | 34 | ||
| HEV-P-Q-175 | 175A | 4100 | 16000 | 35 | ||
| HEV-P-Q-200 | 200A | 5400 | 21000 | 42 | ||
| HEV-P-Q-225 | 225A | 7500 | 30000 | 45 | ||
| HEV-P-Q-250 | 250A | 9700 | 41000 | 47 | ||
| HEV-P-Q-275 | 275A | 12000 | 58000 | 51 | ||
| HEV-P-Q-M300 | 300A | 16500 | 70000 | 56 | HT4 | |
| HEV-P-Q-M325 | 325A | 20000 | 82000 | 61 | ||
| HEV-P-Q-M350 | 350A | 23000 | 94000 | 63 | ||
| HEV-P-Q-M400 | 400A | 30000 | 123000 | 76 | ||
| HEV-P-Q-300 | 300A | 16500 | 70000 | 56 | ||
| HEV-P-Q-325 | 325A | 20000 | 82000 | 61 | ||
| HEV-P-Q-350 | 350A | 23000 | 94000 | 63 | ||
| HEV-P-Q-400 | 400A | 30000 | 123000 | 76 | ||
| HEV-P-Q-450 | 450A | 35000 | 135000 | 95 | ||
| HEV-P-Q-500 | 500A | 44000 | 165000 | 108 | ||
| HEV-P-Q-600 | 600A | 48000 | 210000 | 115 | HT5 | Mounting Bolt M12 recommended torque 28N·m |
| HEV-P-Q-700 | 700A | 53000 | 298000 | 125 | ||
| HEV-P-Q-800 | 800A | 75000 | 445000 | 140 | ||
